AX 1/2" thru 1-1/4": AX-3_4H-NPT
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Balance Valves |
| Product Subsection | Ultra Setter Pressure Independent Control Valves |
| Product Series | Model AX 1/2" thru 1-1/4" |
| Submittal ID | A-609.21D |
| Size | 0.75 |
| Flow Capacity GPM (Min.-Max.) (L/hr) | 0.90 - 5.85 |

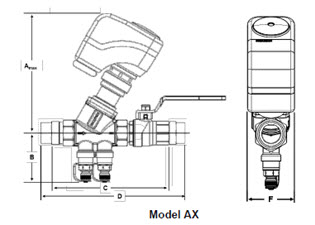

| A-Max | 5.08 |
| B-Dim | 2.12 |
| Connection | NPT FEMALE |
| C-Dim | 5.21 |
| D-Dim | N/A |
| F-Dim | 1.97 |
| WT-Weight (lb) | 1.19 |
| CAD model unit system | inch/pound |
| Actuator | With actuator |
