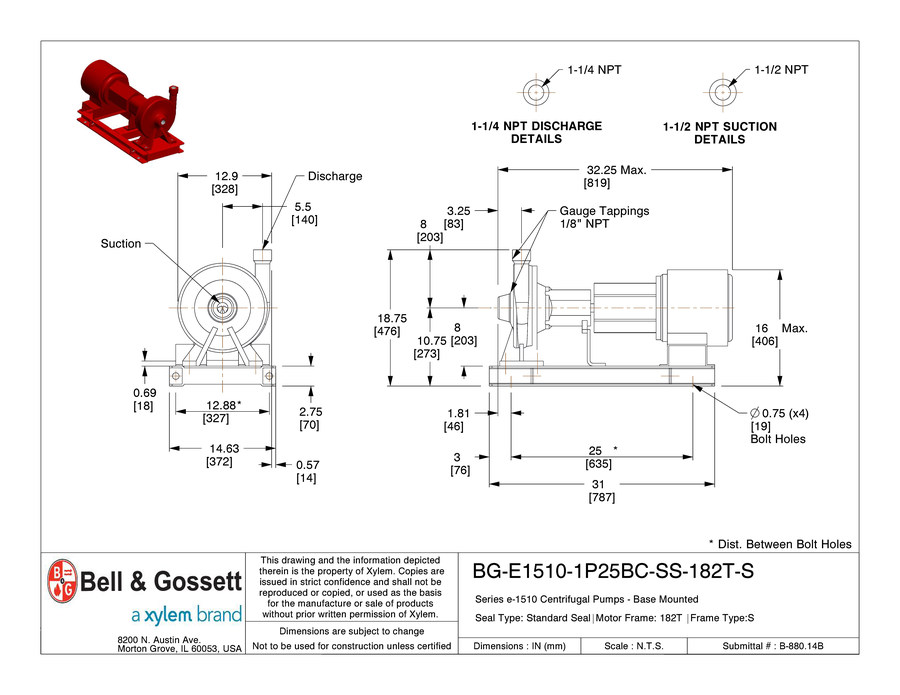

1.25BC (NPT): BG-E1510-1P25BC-SS-182T-S
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Base Mounted Pumps |
| Product Series | e-1510 |
| Pump Size | 1.25BC (NPT) |
| Seal Type | Standard Seal |
| Description | Series e-1510 1.25BC (NPT) Centrifugal Pump |
| Submittal ID | B-880.14B |
| Motor Frame | 182T |
| Frame Type | S |
| Suction Size | 1-1/2 NPT |
| Discharge Size | 1-1/4 NPT |
| CP-Length | NULL |
| HA-Dim | 14.63 |
| HB-Dim | 31.00 |
| HC-Dim | 32.25 |
| HD-Dim | 10.75 |
| HE2-Dim | 12.88 |
| HF1-Dim | 25.00 |
| HG-Height | NULL |
| HH-Dim | 0.75 |
| HL-Length | 1.81 |
| HM-Dim | 16.00 |
| HO-Dim | 18.75 |
| HP-Dim | 3.00 |
| HQ-Holes Per Side | 2 |
| Y-Length | 3.25 |
| Z-Length | 5.50 |
| CAD model unit system | inch/pound |
