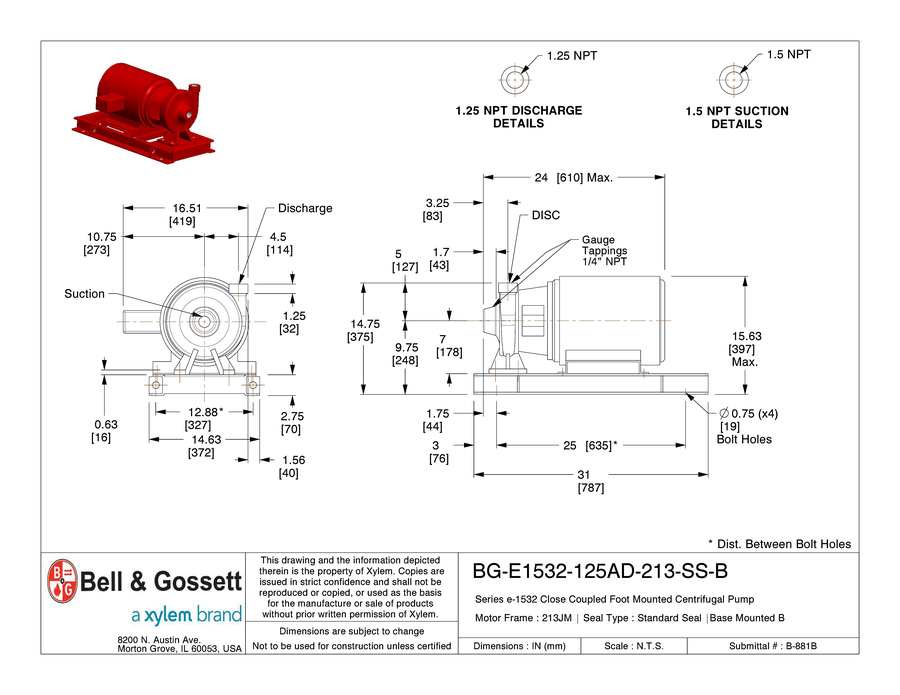

1.25AD (NPT): BG-E1532-125AD-213-SS-B
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Base Mounted Pumps |
| Product Series | e-1532 |
| Pump Size | 1.25AD (NPT) |
| Seal Type | Standard Seal |
| Submittal ID | B-881B |
| Motor Frame | 213JM |
| Suction Size | 1.5 NPT |
| Discharge Size | 1.25 NPT |
| CP-Length | NULL |
| HA-Dim | 14.63 |
| HB-Dim | 31.00 |
| HC-Dim | 24.00 |
| HD-Dim | 9.75 |
| HE2-Dim | 12.88 |
| HF1-Dim | 25.00 |
| HG-Height | 1.75 |
| HH-Dim | 0.75 |
| HL-Length | 1.75 |
| HM-Dim | 15.63 |
| HO-Dim | 14.75 |
| HP-Dim | 3.00 |
| HQ-Holes Per Side | 2 |
| Y-Length | 3.25 |
| Z-Length | 4.50 |
| CAD model unit system | inch/pound |
