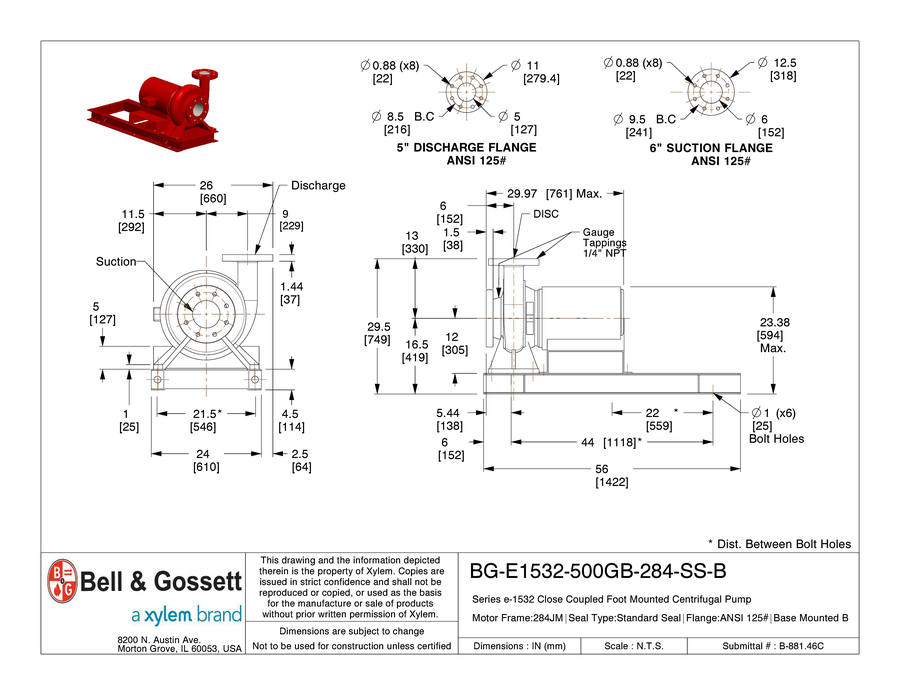

5GB: BG-E1532-500GB-284-SS-B
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Base Mounted Pumps |
| Product Series | e-1532 |
| Pump Size | 5GB |
| Seal Type | Standard Seal |
| Flange Type | ANSI 125# |
| Submittal ID | B-881.46C |
| Motor Frame | 284JM |
| Suction Size | 6 |
| Discharge Size | 5 |
| CP-Length | NULL |
| HA-Dim | 24.00 |
| HB-Dim | 56.00 |
| HC-Dim | 29.97 |
| HD-Dim | 16.50 |
| HE2-Dim | 21.50 |
| HF1-Dim | 44.00 |
| HF2-Dim | 22.00 |
| HG-Height | 5.00 |
| HH-Dim | 1.00 |
| HL-Length | 5.44 |
| HM-Dim | 24.50 |
| HO-Dim | 29.50 |
| HP-Dim | 6.00 |
| HQ-Holes Per Side | 3 |
| Y-Length | 6.00 |
| Z-Length | 9.00 |
| Discharge Flange OD | 11.00 |
| Discharge Flange Thickness | 1.44 |
| Discharge Bolt Circle Dia | 8.50 |
| Discharge No of Bolts | 8 |
| Discharge Bolt Size | 0.88 |
| Suction Flange OD | 12.50 |
| Suction Flange Thickness | 1.50 |
| Suction Bolt Circle Dia | 9.50 |
| Suction No of Bolts | 8 |
| Suction Bolt Size | 0.88 |
| CAD model unit system | inch/pound |
