- Bell & Gossett
- >
- Centrifugal Pumps & Acc.
- >
- Base Mounted Pumps
- >
- Series e-1532
- >
- 8GB
- >
- BG-E1532-800GB-326-SS-B

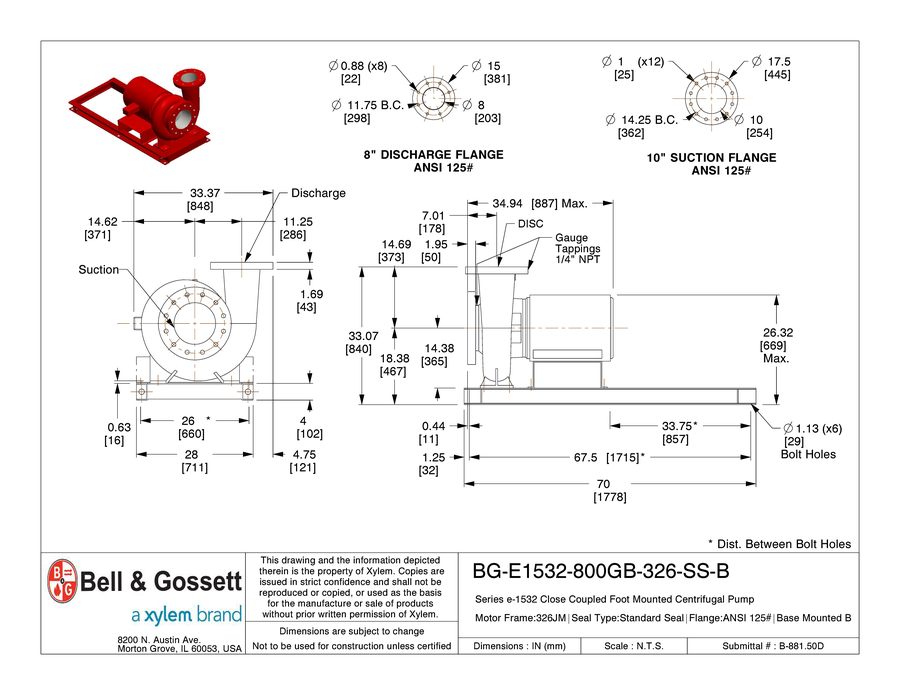

8GB: BG-E1532-800GB-326-SS-B
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Base Mounted Pumps |
| Product Series | e-1532 |
| Pump Size | 8GB |
| Seal Type | Standard Seal |
| Flange Type | ANSI 125# |
| Submittal ID | B-881.50D |
| Motor Frame | 326JM |
| Suction Size | 10 |
| Discharge Size | 8 |
| CP-Length | NULL |
| HA-Dim | 28.00 |
| HB-Dim | 70.00 |
| HC-Dim | 34.94 |
| HD-Dim | 18.38 |
| HE2-Dim | 26.00 |
| HF1-Dim | 67.50 |
| HF2-Dim | 33.75 |
| HG-Height | 6.38 |
| HH-Dim | 1.13 |
| HL-Length | 0.44 |
| HM-Dim | 27.00 |
| HO-Dim | 33.07 |
| HP-Dim | 1.25 |
| HQ-Holes Per Side | 3 |
| Y-Length | 7.01 |
| Z-Length | 11.25 |
| Discharge Flange OD | 15.00 |
| Discharge Flange Thickness | 1.69 |
| Discharge Bolt Circle Dia | 11.75 |
| Discharge No of Bolts | 8 |
| Discharge Bolt Size | 0.88 |
| Suction Flange OD | 17.50 |
| Suction Flange Thickness | 1.95 |
| Suction Bolt Circle Dia | 14.25 |
| Suction No of Bolts | 12 |
| Suction Bolt Size | 1 |
| CAD model unit system | inch/pound |
