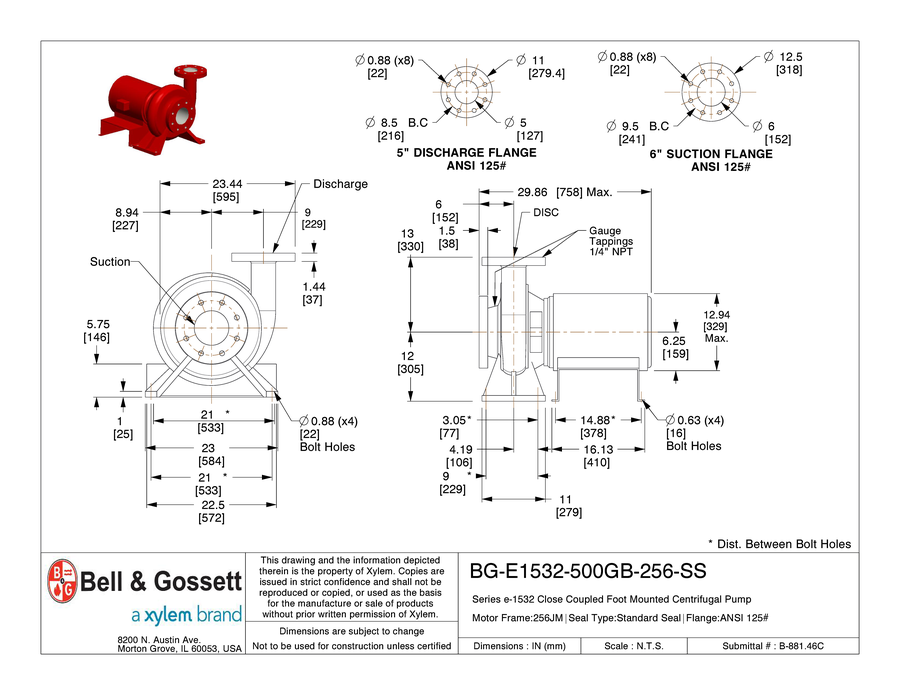

5GB: BG-E1532-500GB-256-SS
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Close Coupled Pumps |
| Product Series | e-1532 |
| Pump Size | 5GB |
| Seal Type | Standard Seal |
| Flange Type | ANSI 125# |
| Submittal ID | B-881.46C |
| Motor Frame | 256JM |
| Suction Size | 6 |
| Discharge Size | 5 |
| A-Dim | 23.00 |
| AB-Length | 8.94 |
| B-Dim | 11.00 |
| CP-Dim | 29.86 |
| CP-Length | NULL |
| D-Dim | 6.25 |
| DD-Height | 12.00 |
| E2-Spacing of Holes | 21.00 |
| F-Dim | 9.00 |
| F2 | 4.19 |
| G-Dim | 1.00 |
| G1-Height | 0.25 |
| H-Dim | 0.88 |
| HA-Dim | 22.50 |
| HB-Dim | 16.13 |
| HE2-Spacing of Holes | 21.00 |
| HF-Length | 14.88 |
| HF2-Dim | 3.05 |
| HG-Dim | 5.75 |
| HG-Height | 5.75 |
| HH-Dim | 0.63 |
| HQ-Holes Per Side | 2 |
| O-Height | 12.94 |
| X-Dim | 13.00 |
| Y-Length | 6.00 |
| Z-Dim | 9.00 |
| Discharge Flange OD | 11.00 |
| Discharge Flange Thickness | 1.44 |
| Discharge Bolt Circle Dia | 8.50 |
| Discharge No of Bolts | 8 |
| Discharge Bolt Size | 0.88 |
| Suction Flange OD | 12.50 |
| Suction Flange Thickness | 1.50 |
| Suction Bolt Circle Dia | 9.50 |
| Suction No of Bolts | 8 |
| Suction Bolt Size | 0.88 |
| CAD model unit system | inch/pound |
