- 2x2x9.5C
- >
- BG-E80-2x2x9.5C-SB184JP-2-IN

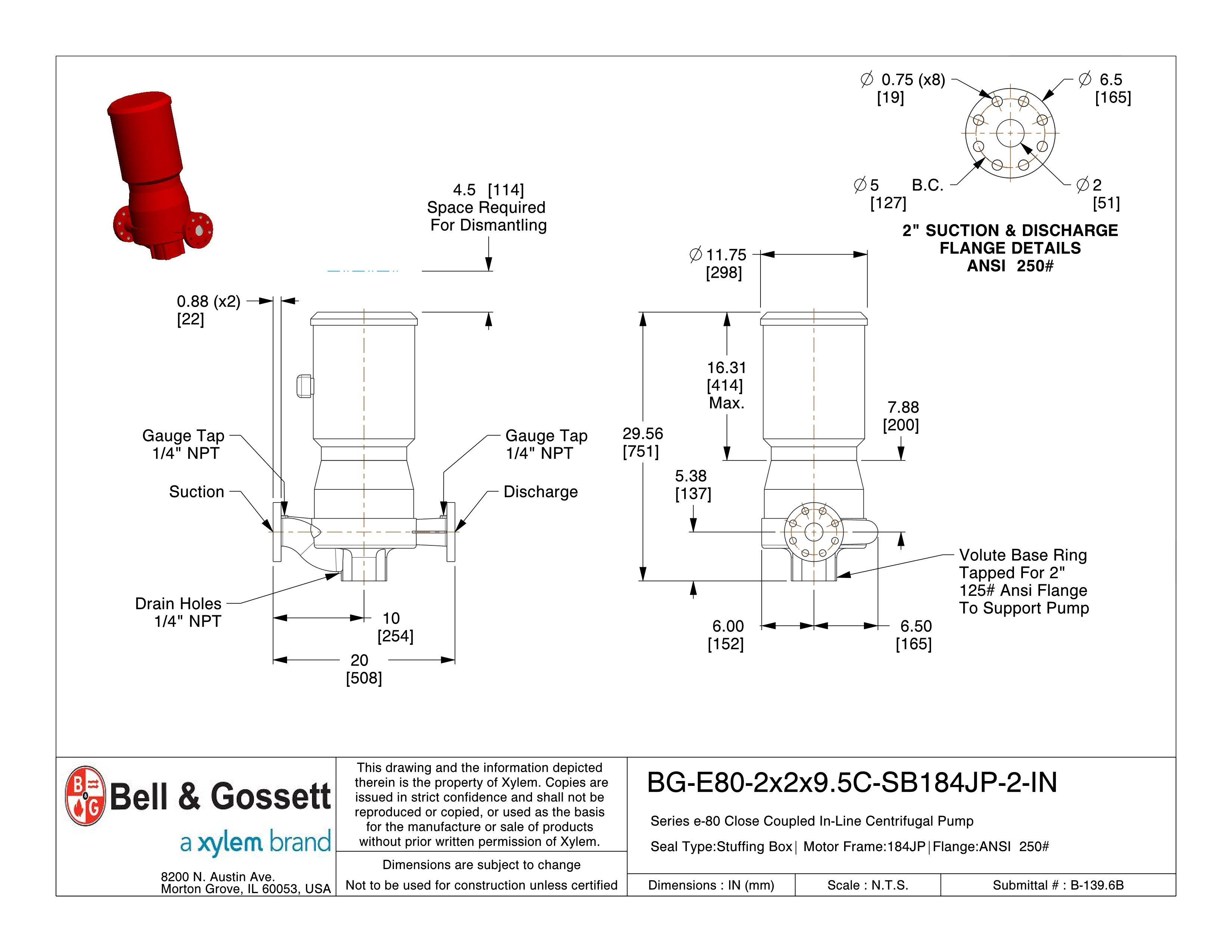

2x2x9.5C: BG-E80-2x2x9.5C-SB184JP-2-IN
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Close-coupled Vertical In-Line Pump |
| Product Series | e-80 |
| Pump Size | 2x2x9.5C |
| Seal Type | Stuffing Box |
| Submittal ID | B-139.6B |
| Motor Frame | 184JP |
| Motor Enclosure | ODP |
| ANSI Flange | 250 ANSI# |
| ITSC Drive | Standard Pump |
| ITSC Position | N/A |
| A-Dim | 10.00 |
| B-Dim | 20.00 |
| C-Dim | 6.00 |
| D-Dim | 6.50 |
| E-Dim | 15.31 |
| F-Dim | 7.88 |
| G-Dim | 5.38 |
| H-Dim | 28.56 |
| R-Dim | 11.75 |
| S-Dim | 1.00 |
| V-Space Req. for Dismantling | 4.50 |
| Discharge Bolt Circle Dia | 5.00 |
| Discharge No of Bolts | 8 |
| Discharge Bolt Size | 0.75 |
| Suction Bolt Circle Dia | 5.00 |
| Suction No of Bolts | 8 |
| Suction Bolt Size | 0.75 |
| CAD model unit system | inch/pound |
| Note | For Single Phase Motors add 1 in. to dimesnsions E & H. |
