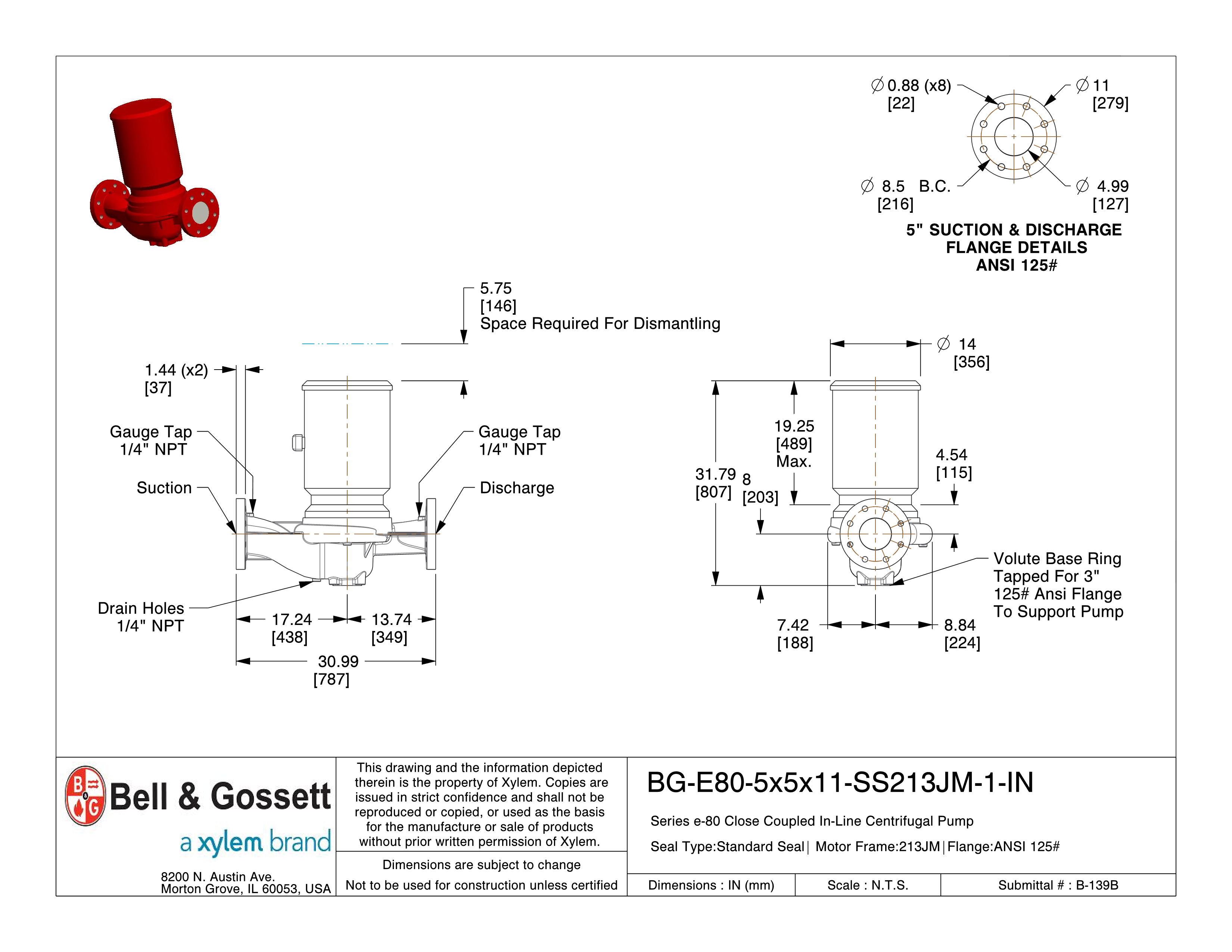

5x5x11: BG-E80-5x5x11-SS213JM-1-IN
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Close-coupled Vertical In-Line Pump |
| Product Series | e-80 |
| Pump Size | 5x5x11 |
| Seal Type | Standard Seal |
| Submittal ID | B-139B |
| Motor Frame | 213JM |
| Motor Enclosure | TEFC |
| ANSI Flange | 125 ANSI# |
| ITSC Drive | Standard Pump |
| ITSC Position | N/A |
| A-Dim | 17.2438 |
| B-Dim | 30.9876 |
| C-Dim | 8.837 |
| D-Dim | 7.419 |
| E-Dim | 19.25 |
| F-Dim | 4.5375 |
| G-Dim | 8 |
| H-Dim | 31.79 |
| R-Dim | 14 |
| S-Dim | 0 |
| V-Space Req. for Dismantling | 5.75 |
| Discharge Bolt Circle Dia | 8.5 |
| Discharge No of Bolts | 8 |
| Discharge Bolt Size | 0.875 |
| Suction Bolt Circle Dia | 8.5 |
| Suction No of Bolts | 8 |
| Suction Bolt Size | 0.875 |
| CAD model unit system | inch/pound |
