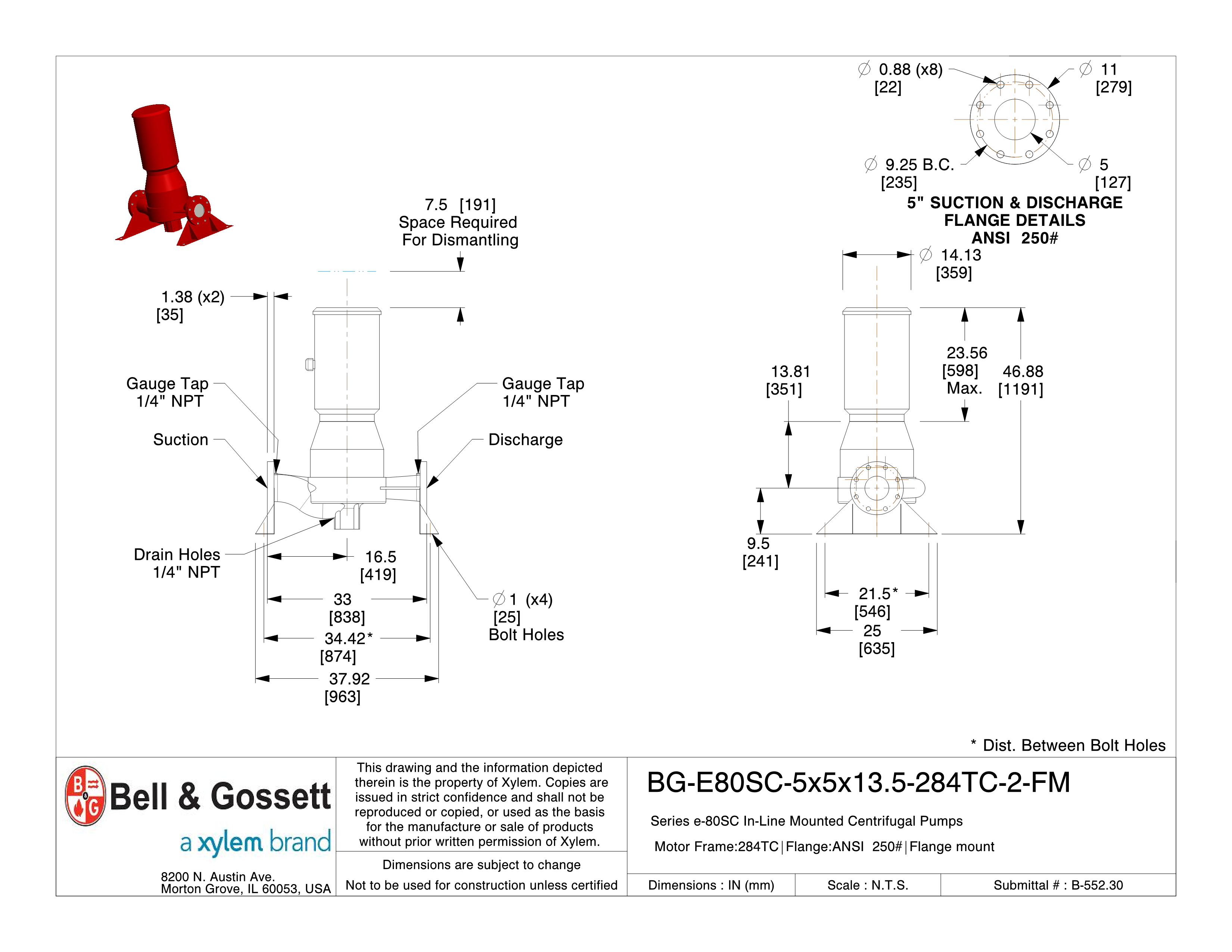

5x5x13.5: BG-E80SC-5x5x13.5-284TC-2-FM
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Close-coupled Vertical In-Line Pump |
| Product Series | e-80SC |
| Pump Size | 5x5x13.5 |
| Shaft Motor | TC |
| Submittal ID | B-552.30 |
| Motor Frame | 284TC |
| Motor Enclosure | TEFC |
| ANSI Flange | 250 ANSI# |
| ITSC Drive | Standard Pump |
| ITSC Position | N/A |
| A-Dim | 16.50 |
| E-Dim | 22.06 |
| F-Dim | 13.81 |
| G-Dim | 9.50 |
| H-Dim | 45.38 |
| HA-Dim | 25.00 |
| HB-Dim | 37.92 |
| HE2-Dim | 21.50 |
| HF-Spacing | 34.42 |
| HH-Dim | 1.00 |
| R-Dim | 14.13 |
| V-Space Req. for Dismantling | 7.50 |
| Discharge Bolt Circle Dia | 9.25 |
| Discharge No of Bolts | 8 |
| Discharge Bolt Size | 0.88 |
| Suction Bolt Circle Dia | 9.25 |
| Suction No of Bolts | 8 |
| Suction Bolt Size | 0.88 |
| CAD model unit system | inch/pound |
