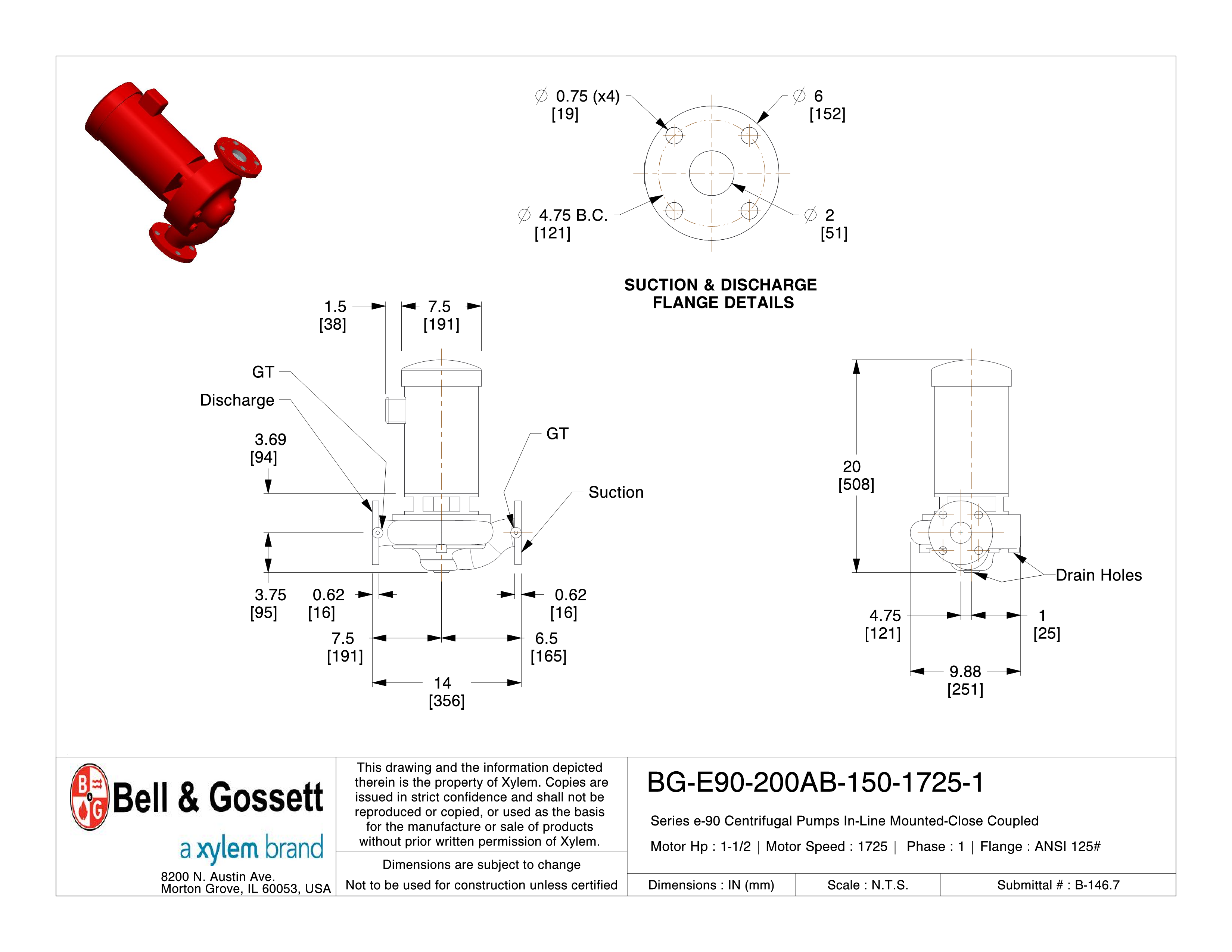

2 AB: BG-E90-200AB-150-1725-1
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Vertical In-Line Mounted - Close Coupled |
| Product Series | e-90 |
| Pump Size | 2AB |
| Submittal ID | B-146.7 |
| RPM | 1725 |
| Motor HP | 1-1/2 |
| Suction Size | 2 |
| Discharge Size | 2 |
| A-Dim | 7.5 |
| B-Dim | 1.5 |
| F-Dim | 3.6875 |
| G-Dim | 3.75 |
| H-Dim | 20 |
| K-Dim | 4.75 |
| L-Dim | 1 |
| N-Dim | 9.875 |
| R-Dim | 6.5 |
| S-Dim | 7.5 |
| T-Dim | 14 |
| CAD model unit system | inch/pound |
