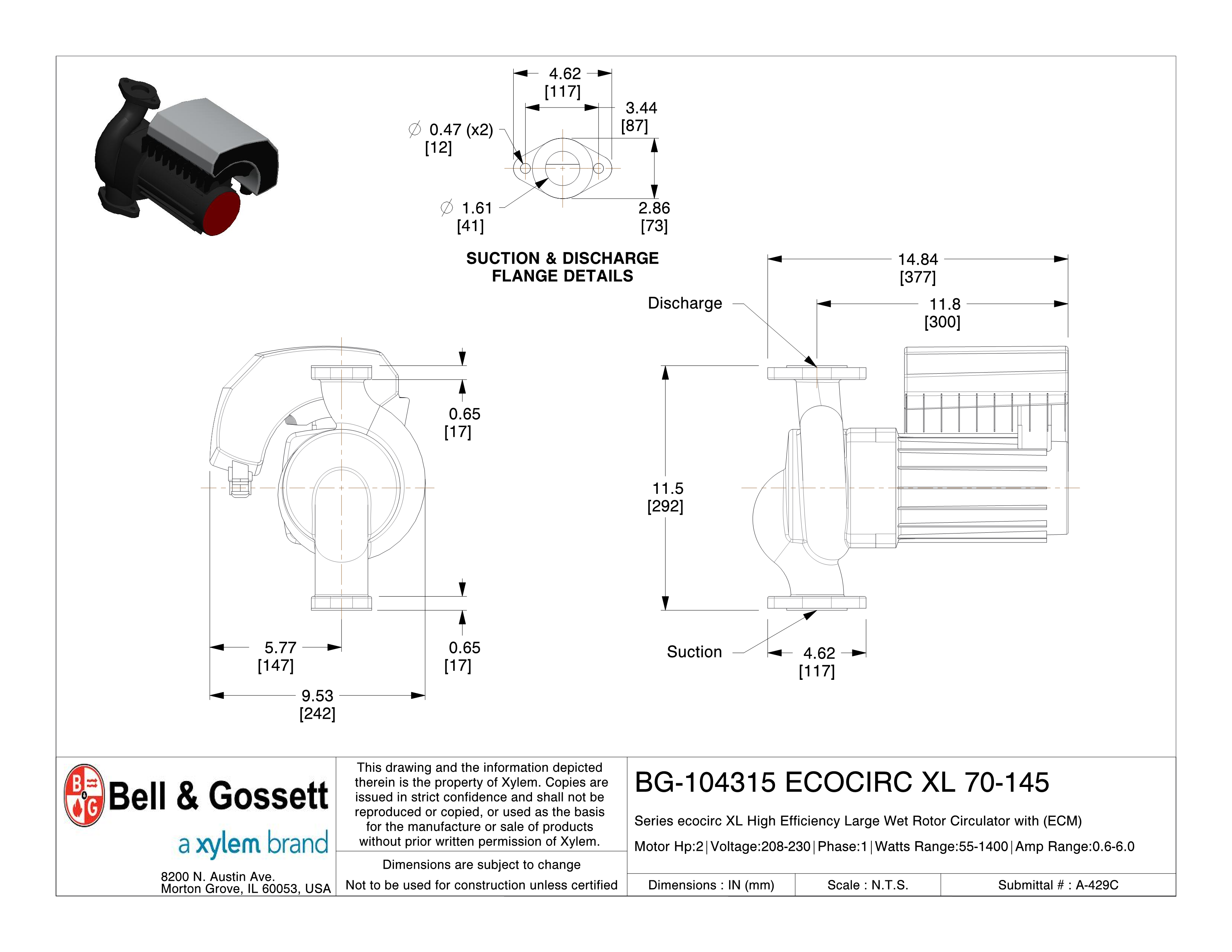

ecocirc XL: BG-104315 ECOCIRC XL 70-145
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Circulators and Accessories |
| Product Series | ecocirc XL |
| Model | XL 70-145 |
| Description | ecocirc XL 70-145 2HP 208-230-1 PH |
| Submittal ID | A-429C |
| Motor HP | 2 |
| Flange Size | 1, 1-1/4,1-1/2 NPT |
| A-Dim | 14.84 |
| Material | Cast Iron (Heating) |
| B-Dim | 11.50 |
| C-Dim | 11.80 |
| D-Dim | 4.62 |
| Voltage | 208-230 |
| E-Dim | 9.53 |
| No. of Bolt Holes | 2 |
| F-Dim | 5.77 |
| Companion Flange | 101205-101207 |
| G-Dim | 4.62 |
| Part Number | 104315 |
| H-Dia | 3.44 |
| Watts Range | 55-1400 |
| Amp Range | 0.6-6.0 |
| J-Dim | 2.86 |
| K-Dim | 0.47 |
| CAD model unit system | inch/pound |
