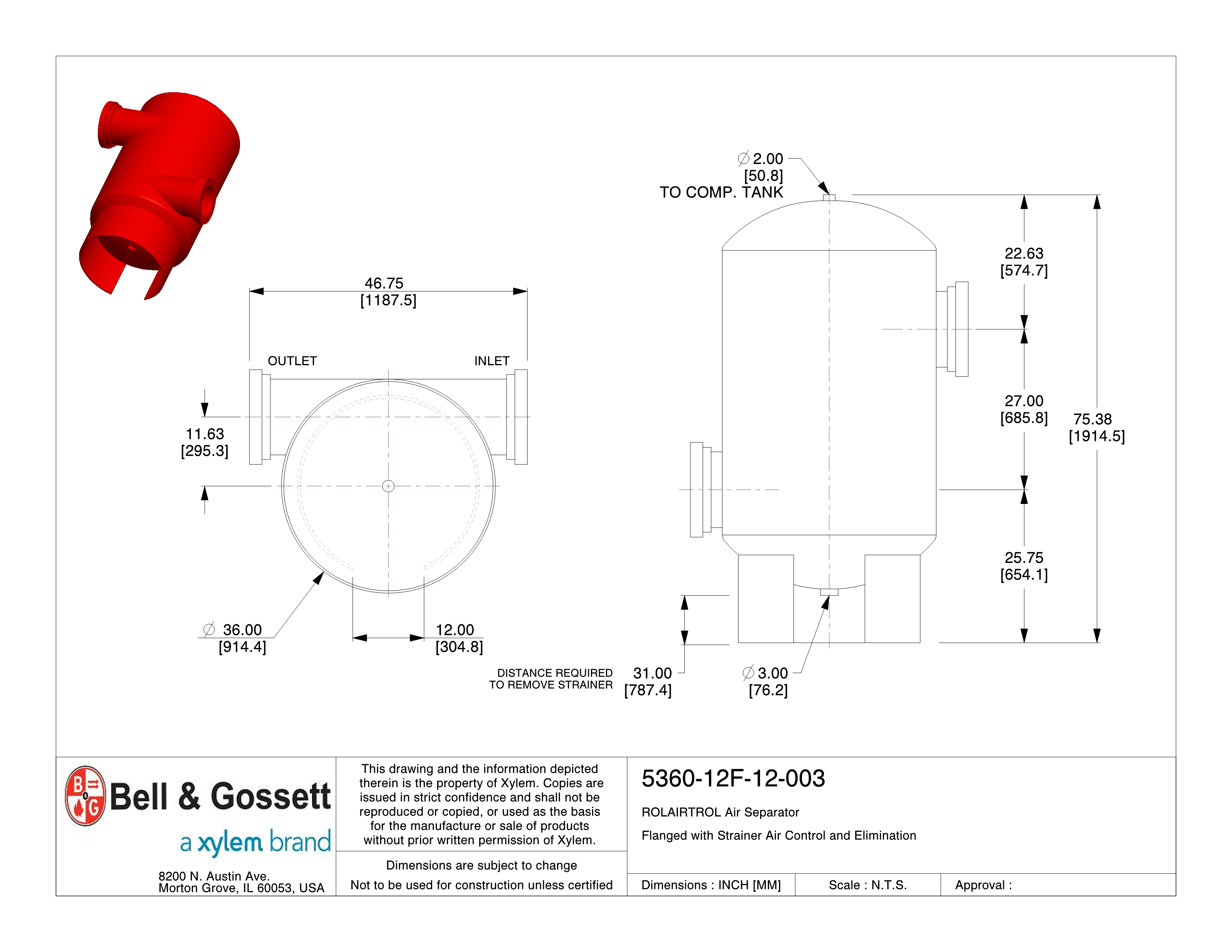

Rolairtrol Air Separator 12" Flanged w/ Strainer
Model: 5360-12F-12-003
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Air Control |
| Product Subsection | Air & Sediment Separators |
| Product Series | The ROLAIRTROL Air Separator |
| Model | R-12F |
| Description | ROLAIRTROL Air Separator |
| Submittal ID | A-326.7G |
| Connection Size | 12 |
| Connection Type | Flanged |
| A-Dim | 75-3/8 (1915) |
| B-Dim | 27 (686) |
| C-Dim | 25-3/4 (654) |
| D-Dim | 22-5/8 (575) |
| E-Dim | 36 (914) |
| F-Dim | 46-3/4 (1187) |
| G-Dim | 11-5/8 (295) |
| H-Dim | 2 (51) |
| J-Dim | 3 (76) |
| K-Dim | 31 (787) |
| L-Dim | 37-5/8 (965) |
| M-Dim | 41-1/2 (1054) |
| N-Dim | 2 (51) |
| Cv Rating (cv) | 2,665 |
| Strainer Free Area (in) | 645 (416,128) |
| Weight of Brackets (lb) | 30 (14) |
| Approx. Vol Gallons (m3) | 291 (1101) |
| Strainer | Yes |
| Support Brackets | No |
| CAD model unit system | inch/pound |
| Approx.Shpg. Weight (lbs(kg)) | 1160 (526) |
| Approx.Flooded Weight (lbs(kg)) | 3,588 (1627) |
