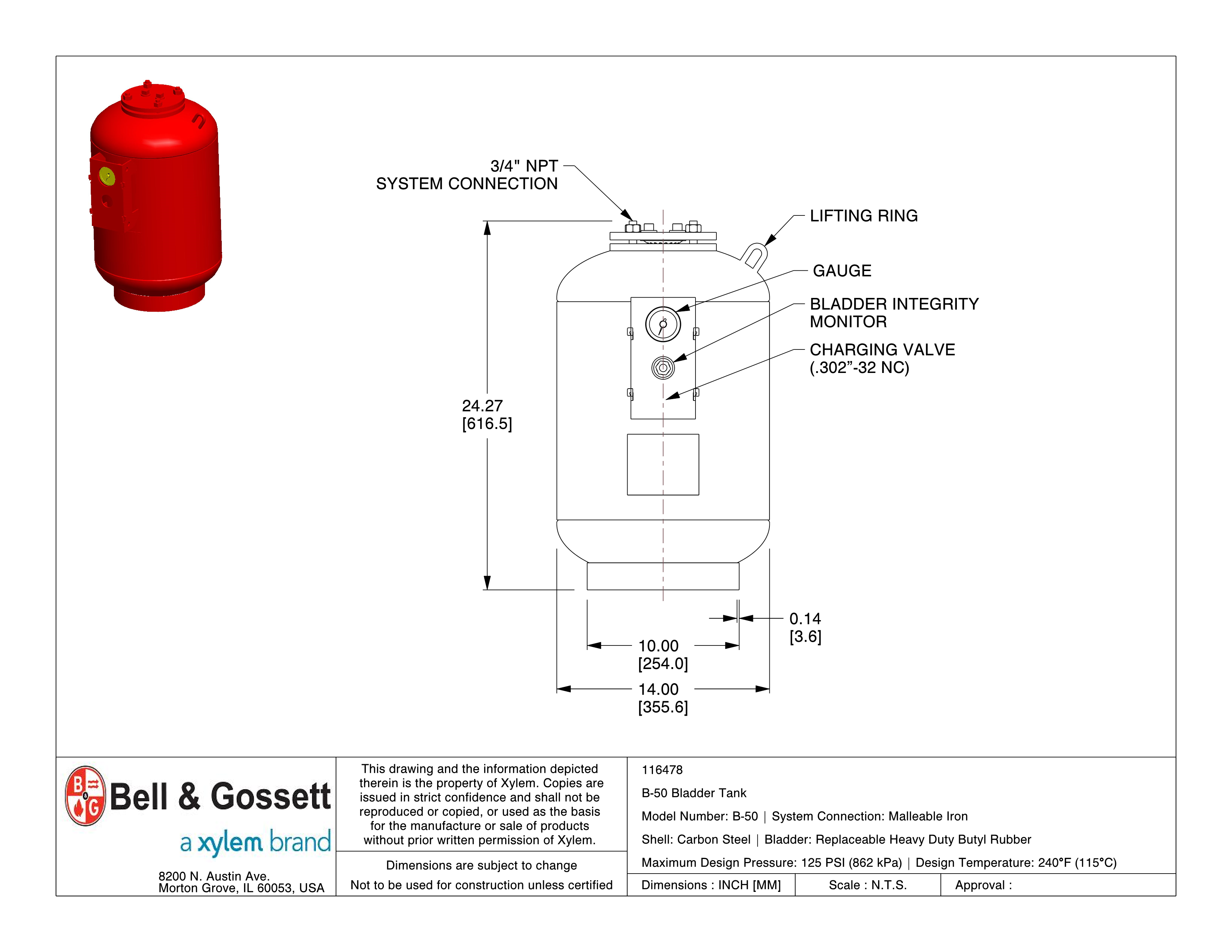

B50 Bladder tank
Model: 116478
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Air Control |
| Product Subsection | Expansion/Compression Tanks |
| Product Series | Series "B" (ASME) Pressurized Expansion Tanks |
| Description | B50 Bladder tank |
| Submittal ID | A-361B |
| Part Number | 116478 |
| Volume Gallons Tank (Gal (L)) | 13 (49) |
| A-Dim | 14 (356) |
| B-Dim | 24 (610) |
| C-Dim | 3/4 |
| D-Dim | N/A |
| E-Dim | 10 (254) |
| F-Dim | 0.14 (4) |
| G-Dim | 9/16 (14) |
| H-Dim | 12 (305) |
| J-Dim | 2 (51) |
| K-Dim | N/A |
| L-Dim | 2 (51) |
| CAD model unit system | inch/pound |
| Approx.Shpg. Weight (lbs(kg)) | 50 (23) |
| Approx.Flooded Weight (lbs(kg)) | 158 (72) |
| Working Pressure | 125 PSI |
