- Series B (ASME) Bladder Style Expansion Tanks
- >
- 116054

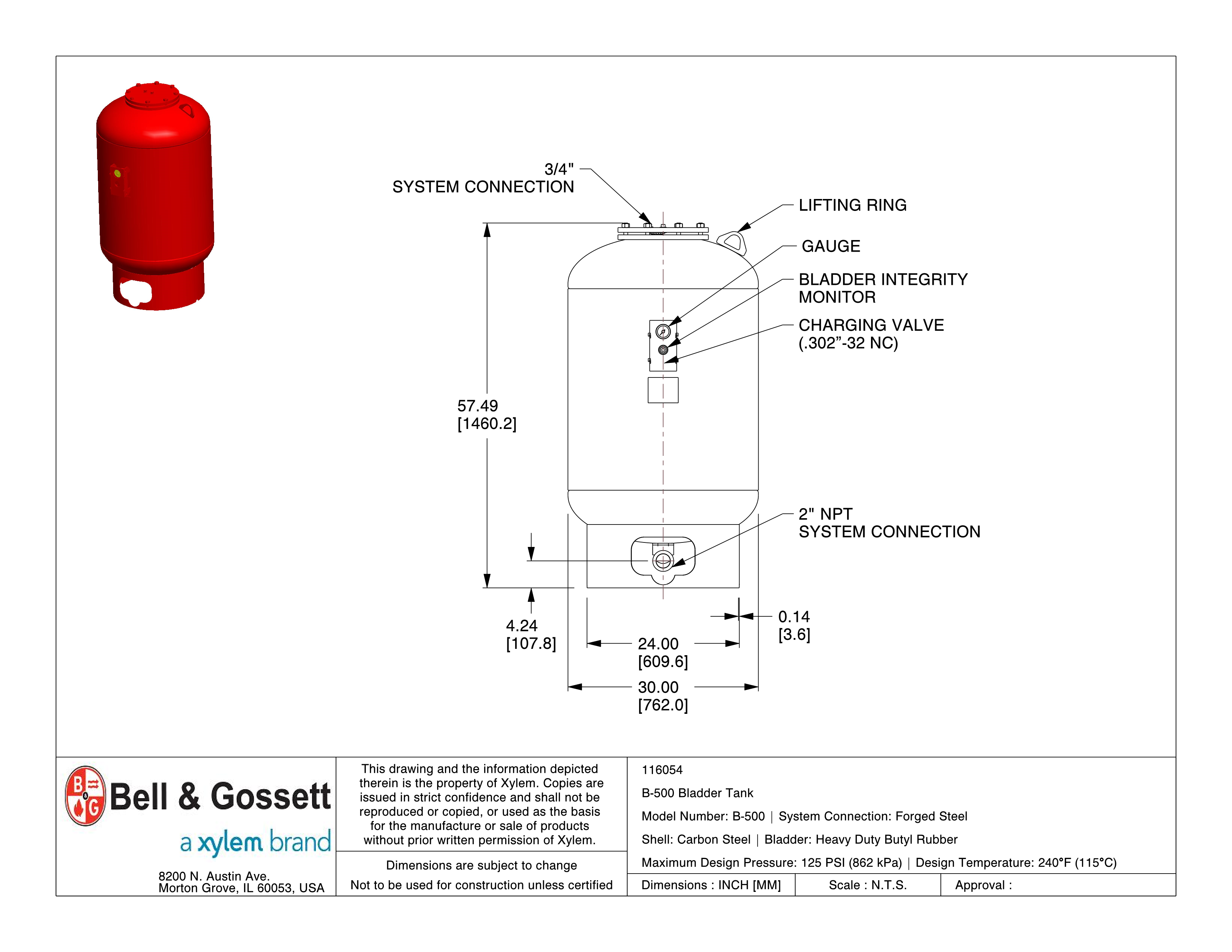

B500 Bladder tank
Model: 116054
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Air Control |
| Product Subsection | Expansion/Compression Tanks |
| Product Series | Series "B" (ASME) Pressurized Expansion Tanks |
| Description | B500 Bladder tank |
| Submittal ID | A-342H |
| Part Number | 116054 |
| Volume Gallons Tank (Gal (L)) | 132 (500) |
| A-Dim | 30 (762) |
| B-Dim | 57 (1,448) |
| C-Dim | 2 |
| D-Dim | 3/4 |
| E-Dim | 24 (610) |
| F-Dim | 0.14 (4) |
| G-Dim | 9/16 (14) |
| H-Dim | 27 (686) |
| J-Dim | 3 (76) |
| K-Dim | 5.25 (133) |
| L-Dim | 3 (76) |
| CAD model unit system | inch/pound |
| Approx.Shpg. Weight (lbs(kg)) | 335 (152) |
| Approx.Flooded Weight (lbs(kg)) | 1,435 (651) |
| Working Pressure | 125 PSI |
