CRSN Air & Sediment Separator, High Velocity, Non-Removable Coalescing Medium

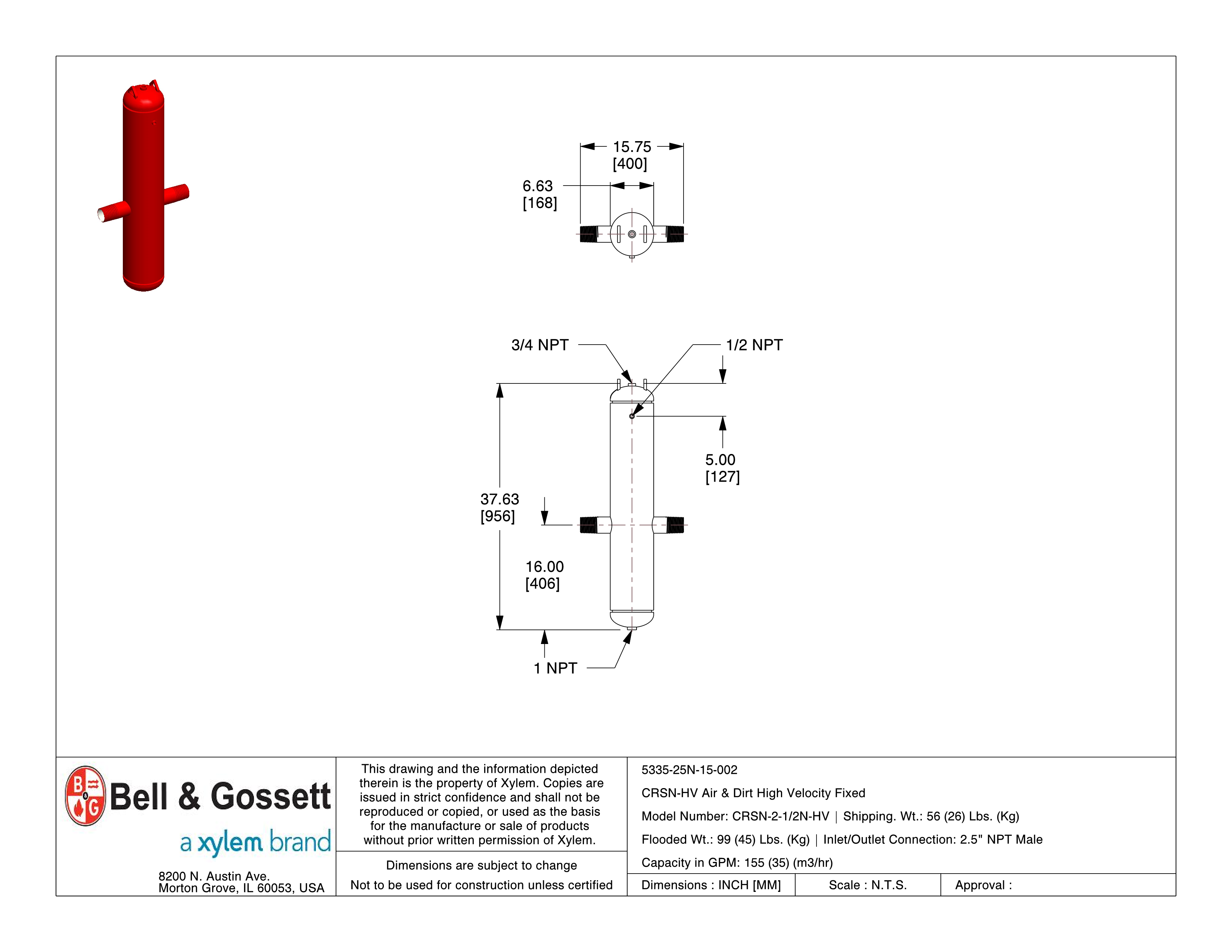

Model: 5335-25N-15-002
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Air Control |
| Product Subsection | Air & Sediment Separators |
| Product Series | CRSN-HV Combo Separator, High Velocity, Non-Removable Head |
| Model | CRSN-2-1/2N-HV |
| Description | HIGH VELOCITY - NON-REMOVABLE HEAD |
| Submittal ID | A-326-17C |
| Capacity Gpm (m3/hr) | 155 (35) |
| Connection Size | 2.5 |
| Connection Type | NPT Male |
| A-Dim | 37.63 (956) |
| B-Dim | 16.00 (406) |
| Connection | 2.5" NPT Male |
| C-Dim | 15.75 (400) |
| E-Dim | 6.63 (168) |
| F-Dim | 5.00 (127) |
| G-Dim | 3/4" NPT |
| H-Dim | 1/2" NPT |
| J-Dim | 1" NPT |
| Charging Valve | 116 |
| Separator Type | Air/Sediment Combo |
| Removable Coalescing Media | No |
| Velocity Design | Standard Velocity |
| CAD model unit system | inch/pound |
| Approx.Shpg. Weight (lbs(kg)) | 56 (26) |
| Approx.Flooded Weight (lbs(kg)) | 99 (45) |
