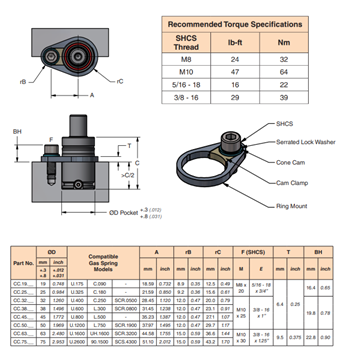

Cam Cinch-lock Mount: CC.19.E
| Request Quote | Quantity |
Product Details
| Documentation | |
| Catalog/Bulletin | B23107_Cam-Cinch-lock.pdf |
| Series | Cam Cinch-lock Mount |
| Unit Type | E - Imperial |
| D (inch) | 0.748 |
| A (inch) | 0.732 |
| rB (inch) | 0.350 |
| rC (inch) | 0.490 |
| F (SHCS) E (inch) | 5/16 - 18 x 3/4” |
| T (inch) | 0.250 |
| BH (inch) | 0.650 |
