HP.W.32: HP.W.32.025.G.4.TO
| Request Quote | Quantity |
Product Details
| Configuration | |
| Mount Option | |
| Documentation | |
| Catalog/Bulletin | hp_catalog.pdf |
| Series | HP |

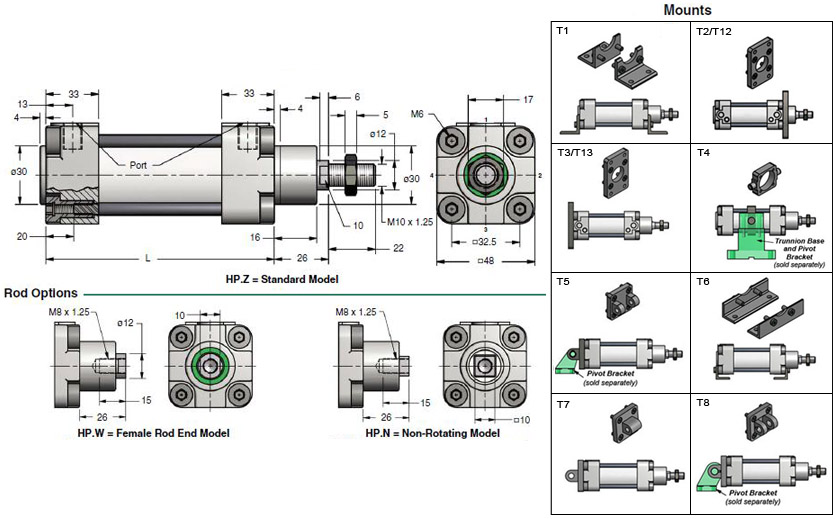

| Rod Option | W = Female Rod End Model |
| Bore Diameter | Ø32 |
| Stroke Length Order Code (mm) | 025 |
| Port Style | G = 1/8 BSPP |
| Port Location | 4 = Left |
| Overall Length (mm) | 119.0 |
