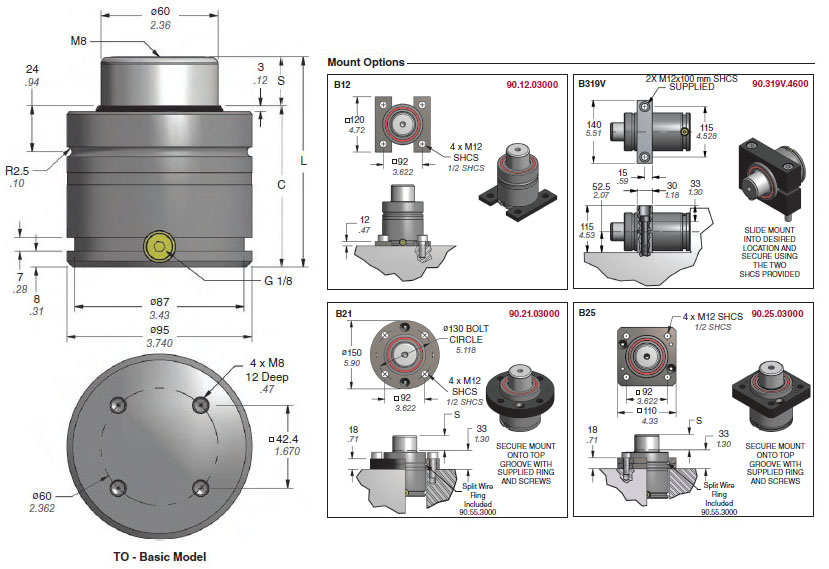

U.4600: U.4600.063.TO.F
| Request Quote | Quantity |
Product Details
| Configuration | |
| Charging Pressure (bar) (15 to 150) | |
| Mount Option | |
| Documentation | |
| Catalog/Bulletin | u_catalog.pdf |
| Series | U |
| Model | 4600 |
| Stroke Length Order Code (mm) | 063 |
| S (mm) | 62.5 |
| C (mm) (mm) | 120.5 |
| Overall Length (mm) | 183.0 |
| Max On-Contact Force (lb) | 9532 |
| Max On-Contact Force (daN) | 4241 |
| Can Diameter (mm) | 95.0 |
