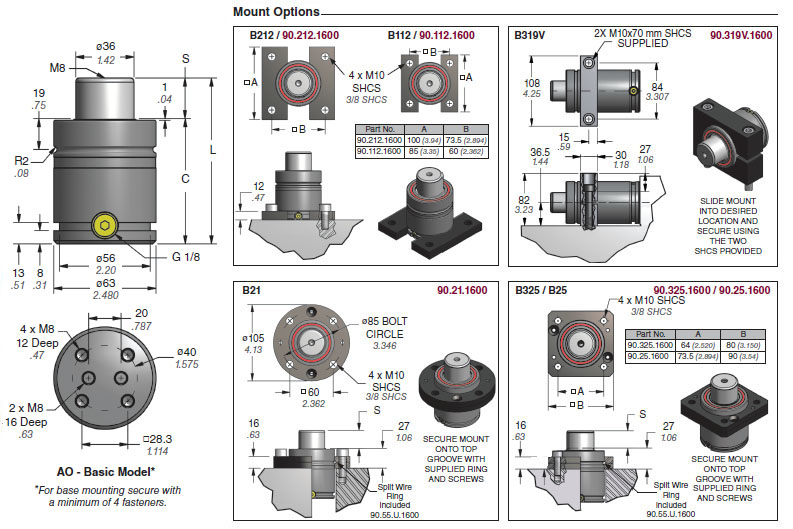

UH.1600: UH.1600.050.AO.C
| Request Quote | Quantity |
Product Details
| Configuration | |
| Charging Pressure (bar) (15 to 150) | |
| Mount Option | |
| Documentation | |
| Catalog/Bulletin | uh_catalog_revA.pdf |
| Series | UH |
| Model | 1600 |
| Stroke Length Order Code (mm) | 050 |
| S (mm) | 50.0 |
| C (mm) (mm) | 102.0 |
| Overall Length (mm) | 152.0 |
| Max On-Contact Force (lb) | 3432 |
| Max On-Contact Force (daN) | 1527 |
| Can Diameter (mm) | 63.0 |
