• DOUBLE HEXAGON MACHINE BOLT EXTENDED WASHER HEAD
• >
• MS21279-1-12

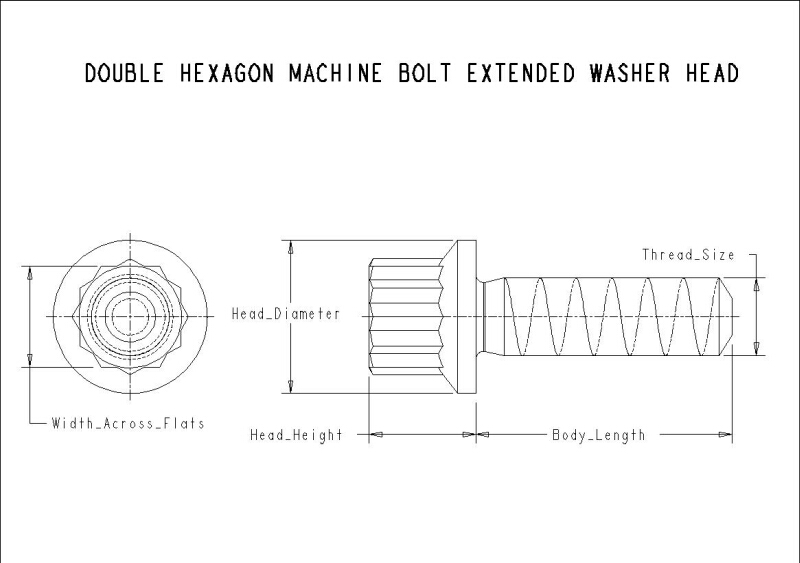

.190-32X0.875 UNJF-3A DOUBLE HEXAGON MACHINE BOLT EXTENDED WASHER HEAD

Model: MS21279-1-12

Download CAD
View 3D Model View 2D Model

Product Details

Documentation
Schematic

Manufacturer Name	MS
Thread Size	.190-32_UNJF-3A
Length (in)	0.875
Head Height (in)	0.260
Head Diameter (in)	0.375
Material	CORROSION AND HEAT RESISTANT STEEL AMS 5735
Nominal Diameter Thread Pitch	.190-32
Thread Size	.190-32_UNJF-3A
Weight	1.23_LBS/100
Width Across Flats (in)	0.247
Thread Type	UNJF-3A
