0.138-32 X 0.375 UNC-3A HEX SOCKET HEAD CAP SCREW

Model: MS16995-1-17

Download CAD
View 3D Model View 2D Model

Product Details

Documentation

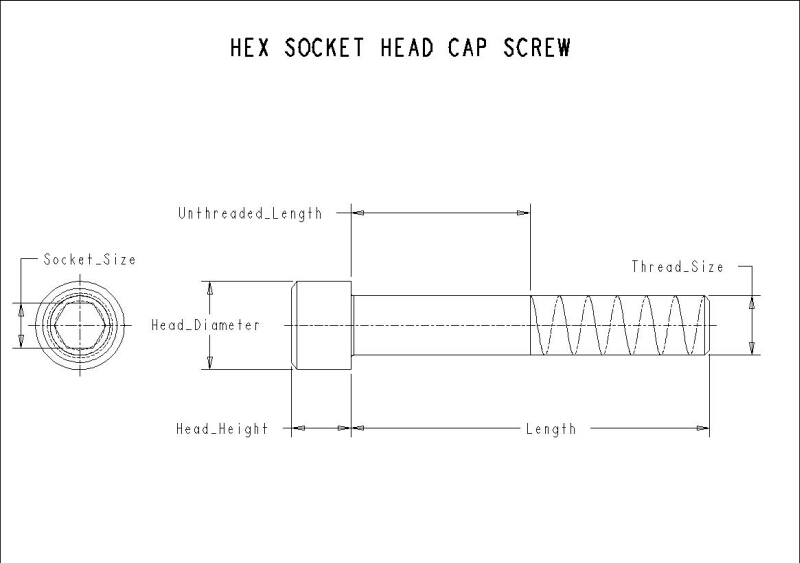

Schematic

Manufacturer Name	MS
Thread Size	.138-32_UNC-3A
Length (in)	0.375
Head Height (in)	0.136
Head Diameter (in)	0.222
Unthreaded Length (in)	0.009
Material	CORROSION RESISTANT STEEL
Finish Type	PASSIVATED
Nominal Diameter Thread Pitch	.138-32
Thread Size	.138-32_UNC-3A
Socket Size (in)	0.110
Thread Type	UNC-3A
