0.086-56 X 0.438 UNC-2A MACHINE SCREW, FLAT COUNTERSUNK HEAD

Model: MS18211-1-6C

Download CAD
View 3D Model View 2D Model

Product Details

Documentation

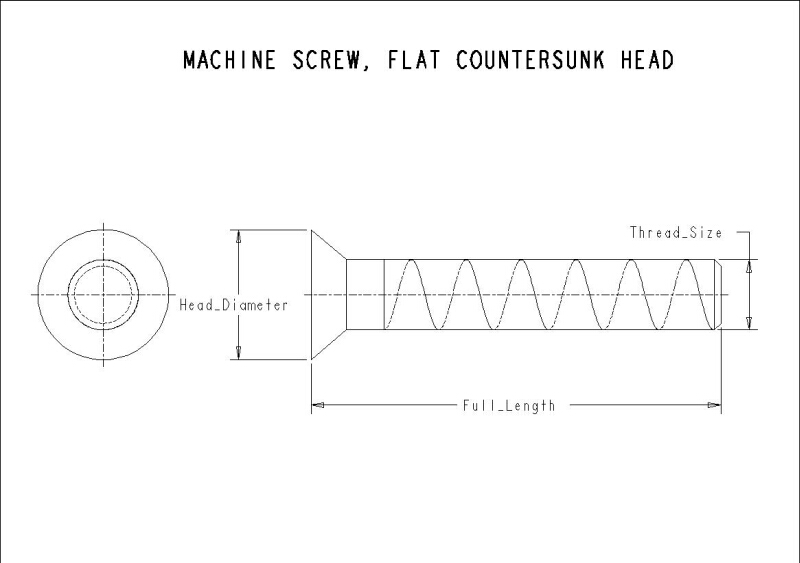

Schematic

Manufacturer Name	MS
Thread Size	.086-56_UNC-2A
Head Diameter (in)	0.160
Number Of Threads Per Inch	56
Full Length (in)	0.438
Material	PLASTIC, NYLON
Nominal Diameter Thread Pitch	.086-56
Thread Size	.086-56_UNC-2A
Thread Type	UNC-2A
