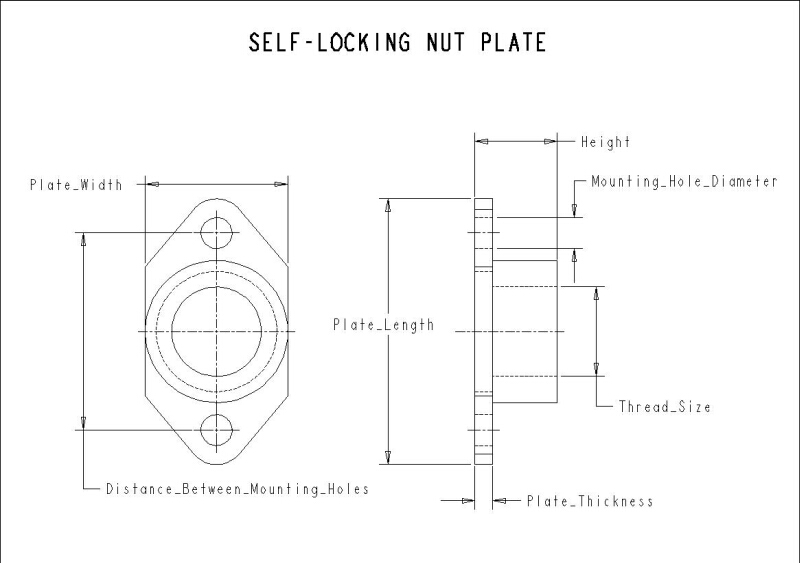

| Schematic |  |
| Manufacturer Name | MS |
| Thread Size | .164-32_UNJC-3B |
| Height (in) | 0.250 |
| Mounting Hole Diameter (in) | 0.098 |
| Distance Between Mounting Holes (in) | 0.468 |
| Body Diameter (in) | 0.164 |
| Material | CARBON STEEL |
| Finish Type | CADMIUM_PLATED |
| Nominal Diameter Thread Pitch | 0.164 |
| Thread Size | .164-32_UNJC-3B |
| Weight | 0.18_LBS/100 |
| Plate Width (in) | 0.264 |
| Plate Length (in) | 0.692 |
| Plate Thickness (in) | 0.047 |
| Thread Type | UNJC-3B |
