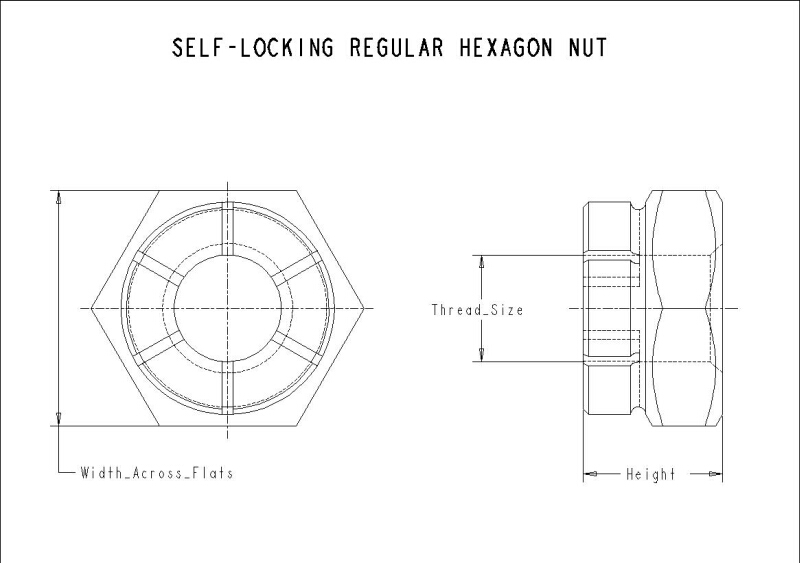

0.7500-16 UNJF-3B SELF-LOCKING REGULAR HEXAGON NUT

Model: MS21046-1-C12S

Download CAD
View 3D Model View 2D Model

Product Details

Documentation
Schematic

Manufacturer Name	MS
Thread Size	.7500-16_UNJF-3B
Height (in)	0.873
Head Height (in)	0.316
Body Diameter (in)	0.750
Material	CORROSION RESISTANT STEEL
Finish Type	SILVER_PLATED
Nominal Diameter Thread Pitch	.7500-16
Thread Size	.7500-16_UNJF-3B
Weight	13.60_LBS/100
Width Across Flats (in)	1.058
Thread Type	UNJF-3B
