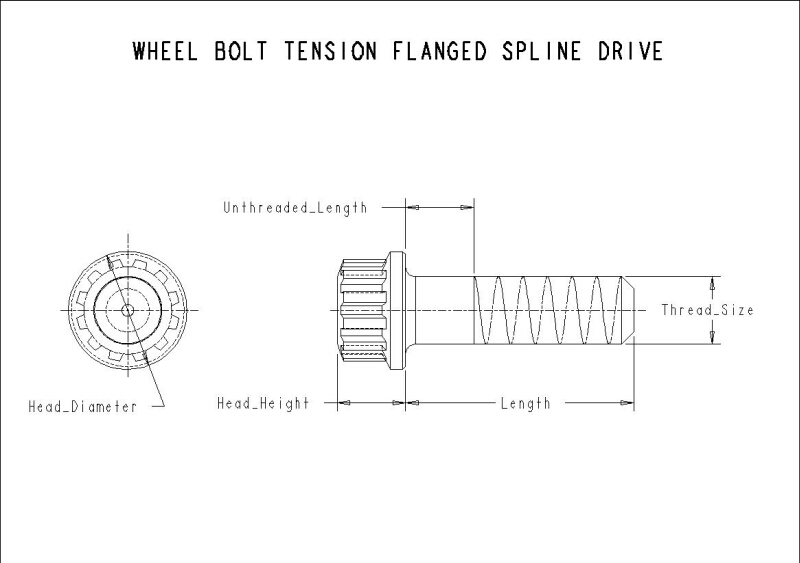

• WHEEL BOLT TENSION FLANGED SPLINE DRIVE
• >
• MS14163-1-04016

.2500-28X1.585 UNJF-3A WHEEL BOLT TENSION FLANGED SPLINE DRIVE

Model: MS14163-1-04016

Download CAD
View 3D Model View 2D Model

Product Details

Documentation
Schematic

Manufacturer Name	MS
Thread Size	.2500-28_UNJF-3A
Wrench	10
Length (in)	1.585
Head Height (in)	0.250
Head Diameter (in)	0.433
Unthreaded Length (in)	1.000
Material	STEEL
Nominal Diameter Thread Pitch	.2500-28
Thread Size	.2500-28_UNJF-3A
Thread Type	UNJF-3A
