NBF Wet Rotor Pumps and Accessories: 103418LF
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Close Coupled Pumps |
| Product Series | Series NBF |
| Model | NBF-25* |
| Description | 103418LF |
| Submittal ID | A-127L |
| RPM | 2950 |

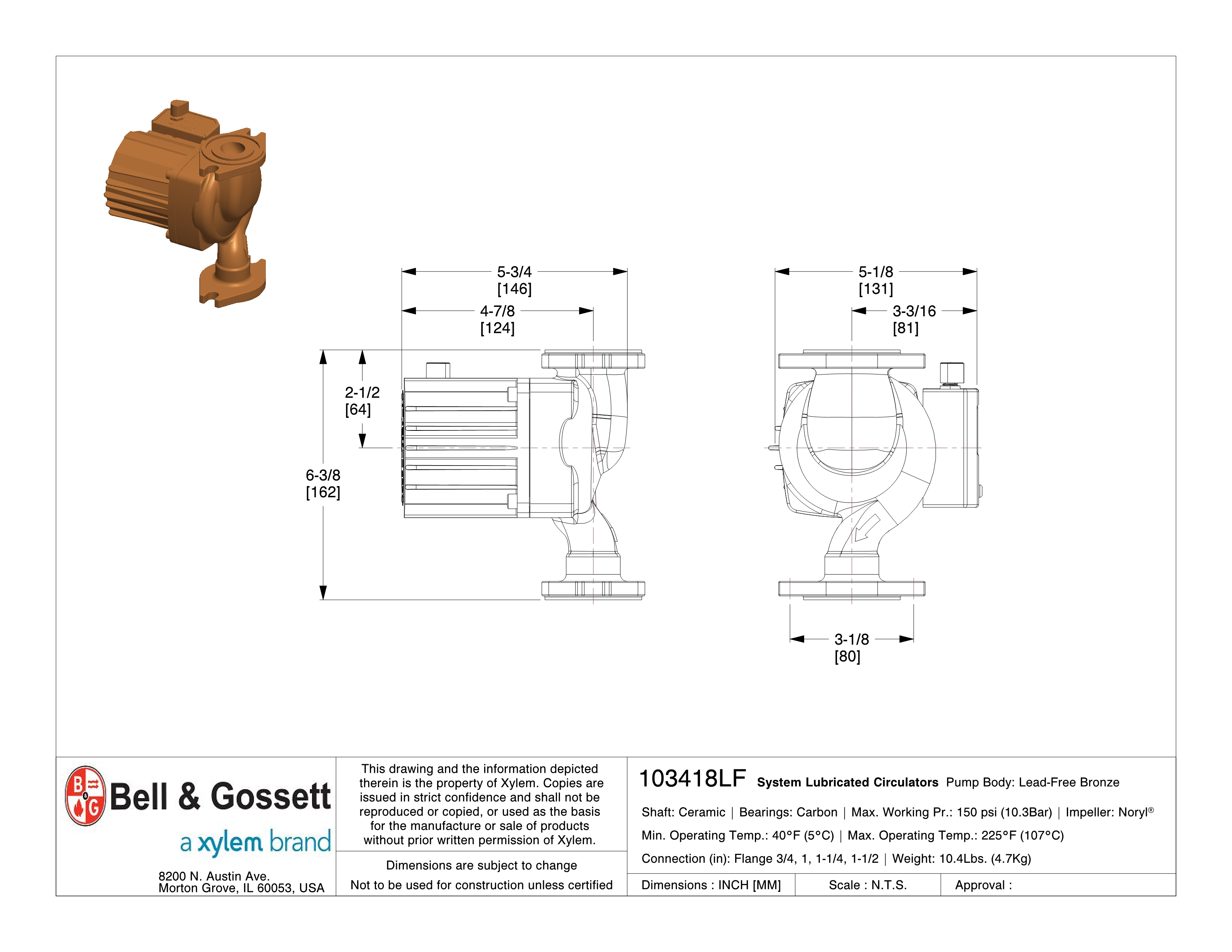

| A-Dim | 5-1/8 (130) |
| B-Dim | 3-3/16 (81) |
| Connection | Flange 3/4, 1, 1-1/4, 1-1/2 |
| C-Dim | 3-3/16 (81) |
| D-Dim | 6-3/16 (157) |
| E-Dim | 4-7/8 (124) |
| F-Dim | 6-3/8 (162) |
| G-Dim | 2-1/2 (63) |
| CAD model unit system | inch/pound |
| WATTS | 125 |
| F.L.AMPS | 1.10 |
| Approx.Shpg. Weight (lbs(kg)) | 10.4 (4.7) |
