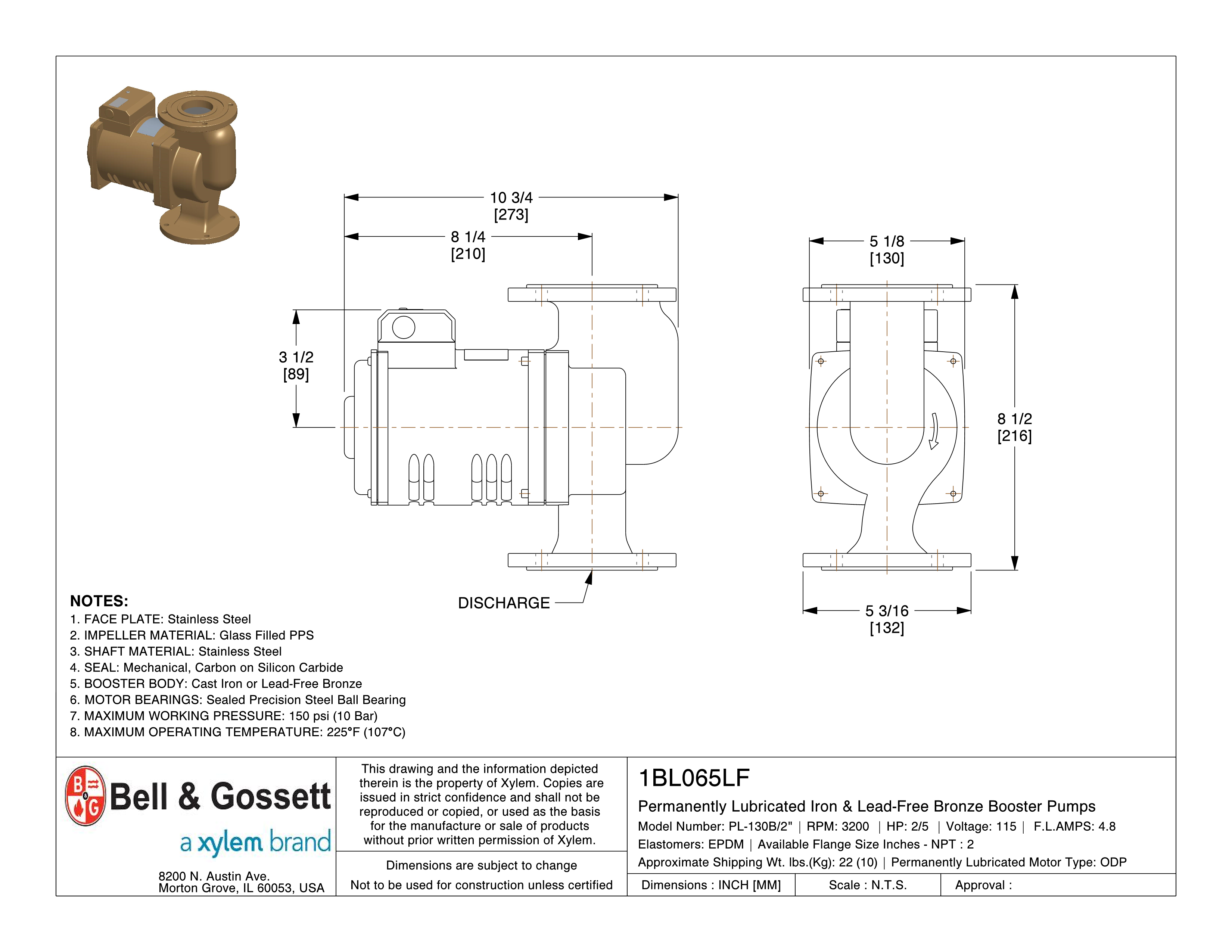

Series PL Maintenance Free Pumps: 1BL065LF
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Close Coupled Pumps |
| Product Series | Series PL |
| Model | PL-130B/2" |
| Description | 1BL065LF |
| Submittal ID | A-135H |
| RPM | 3200 |
| Motor HP | 2/5 |
| Flange Size | 2 |
| A-Dim | 10 3/4 |
| B-Dim | 8 1/2 |
| C-Dim | 8 1/4 |
| D-Dim | 5 3/16 |
| Voltage | 115 |
| E-Dim | 5 1/8 |
| Amp Range | 4.8 |
| Approx. Shpg Wt. (lb) | 22 |
| CAD model unit system | inch/pound |
