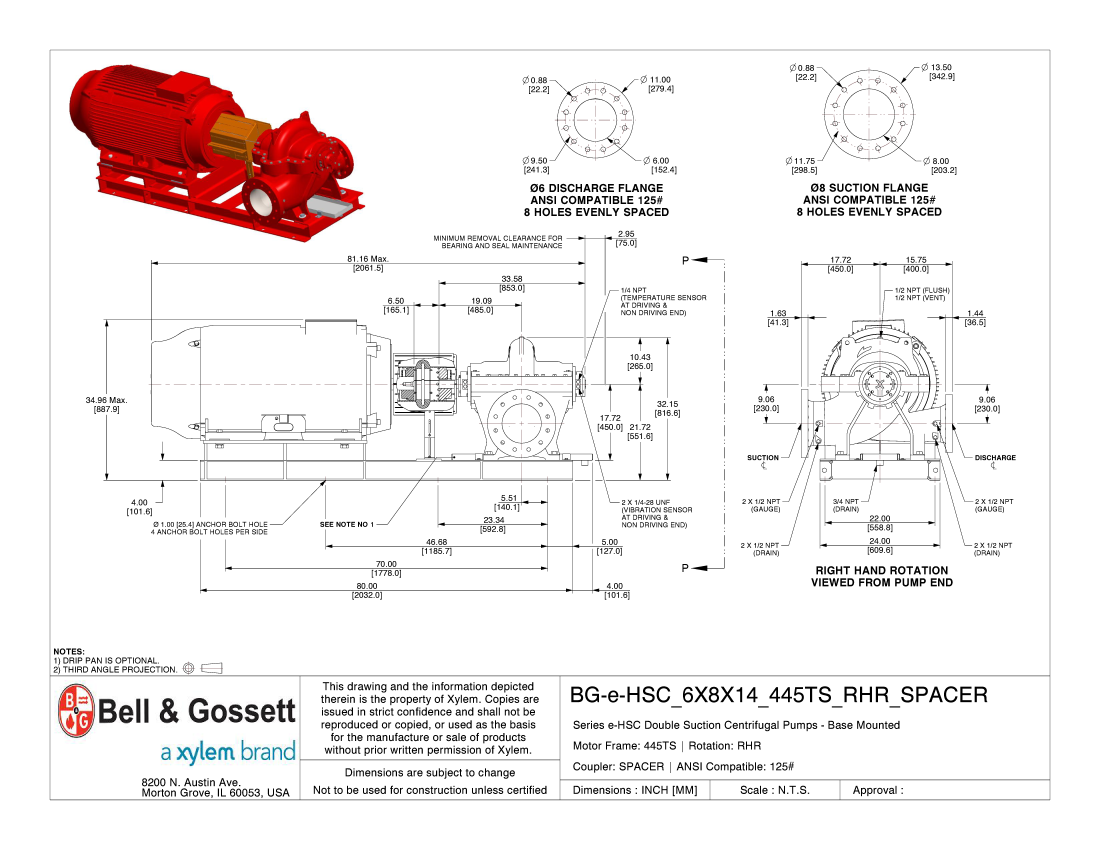

Product Details
| Documentation |
| Download Revit File |
 |
| Contact CAD Support |
|
| Product Section |
Centrifugal Pumps & Accessories |
| Product Subsection |
Base Mounted Pumps |
| Product Series |
e-HSC |
| Model |
6X8X14 |
| Pump Rotation |
Right Hand Rotation |
| RPM |
1800 |
| Motor Frame |
445TS |
| CP-Length |
33.58 |
| HA-Width |
24 |
| HB-Length |
80 |
| HC-Length |
81.16 |
| HD-Height |
21.72 |
| HE2-Spacing of Holes |
22 |
| HF1-Spacing of Holes |
70 |
| HF2-Spacing of Holes |
23.34 |
| HG-Height |
4 |
| HH-Diameter |
1 |
| HM-Height |
34.96 |
| HO-Height |
32.15 |
| HP-Length |
5 |
| HQ-Holes Per Side |
4 |
| HR-Length |
5.51 |
| S-Dim |
9.06 |
| VH-Dim |
10.43 |
| W-Length |
19.09 |
| X-Dim |
15.75 |
| YY-Dim |
17.72 |
| Z-Dim |
9.06 |
| Coupler |
SPACER |
| Removal Clearance |
2.952755905511811 |
| HF3-Spacing |
46.68 |
| HF4-Spacing |
0.00 |
| HF5-Spacing |
0.00 |
| HD1-Height |
17.72 |
| SF_ND-Size |
8.00 |
| SF_T-Thickness |
1.6259842519685037 |
| SF_OD-Size |
13.50 |
| SF_BC-Diameter |
11.75 |
| SF_HH-Size |
0.88 |
| SF_HQ-No of Bolts |
8.00 |
| DF_ND-Size |
6.00 |
| DF_T-Thickness |
1.437007874015748 |
| DF_OD-Diameter |
11.00 |
| DF_BC-Diameter |
9.50 |
| DF_HH-Size |
0.88 |
| DF_HQ-No of Bolts |
8.00 |
| DBSE-Distance |
6.50 |
| Rotation |
RHR |
