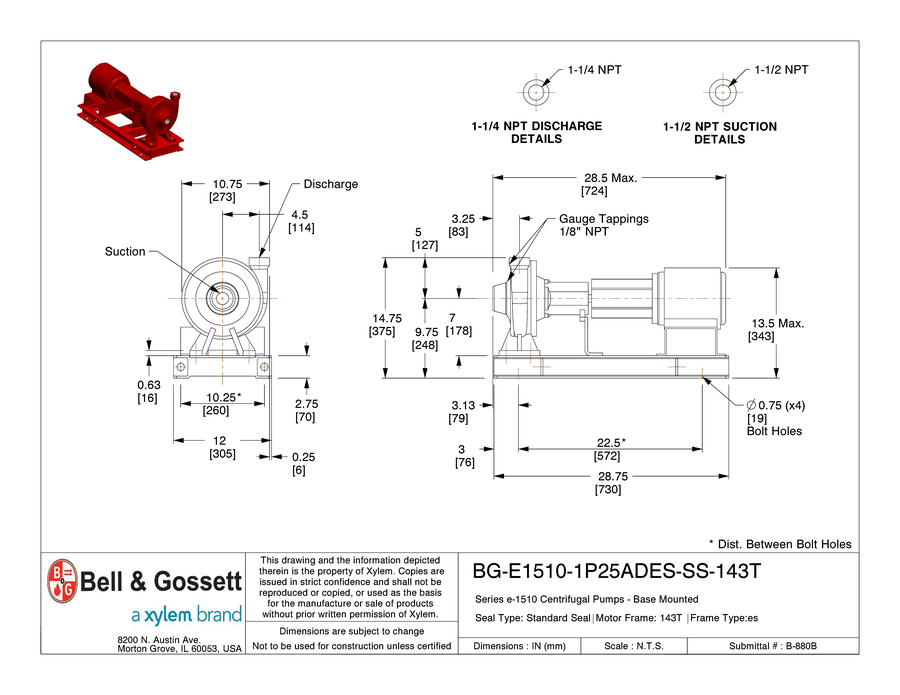

1.25AD-es (NPT): BG-E1510-1P25ADES-SS-143T
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Base Mounted Pumps |
| Product Series | e-1510 |
| Pump Size | 1.25AD-es (NPT) |
| Seal Type | Standard Seal |
| Description | Series e-1510 1.25AD-es (NPT) Centrifugal Pump |
| Submittal ID | B-880B |
| Motor Frame | 143T |
| Frame Type | es |
| Suction Size | 1-1/2 NPT |
| Discharge Size | 1-1/4 NPT |
| CP-Length | NULL |
| HA-Dim | 12.00 |
| HB-Dim | 28.75 |
| HC-Dim | 28.50 |
| HD-Dim | 9.75 |
| HE2-Dim | 10.25 |
| HF1-Dim | 22.50 |
| HG-Height | NULL |
| HH-Dim | 0.75 |
| HL-Length | 3.13 |
| HM-Dim | 13.50 |
| HO-Dim | 14.75 |
| HP-Dim | 3.00 |
| HQ-Holes Per Side | 2 |
| Y-Length | 3.25 |
| Z-Length | 4.50 |
| CAD model unit system | inch/pound |
