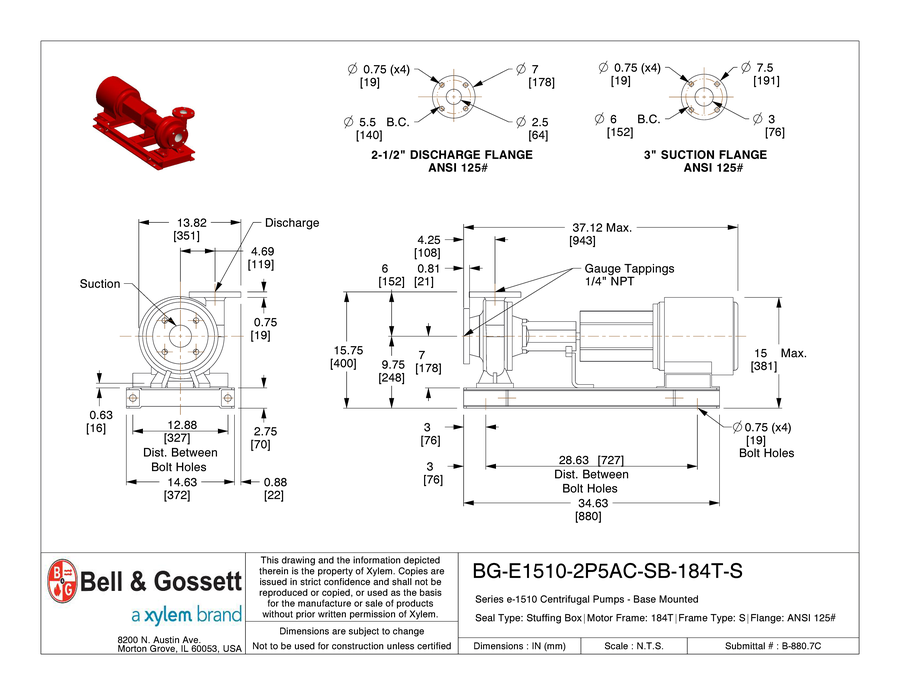

2.5AC: BG-E1510-2P5AC-SB-184T-S
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Base Mounted Pumps |
| Product Series | e-1510 |
| Pump Size | 2.5AC |
| Seal Type | Stuffing Box |
| Flange Type | ANSI 125# |
| Description | Series e-1510 2.5AC Centrifugal Pump |
| Submittal ID | B-880.7C |
| Motor Frame | 184T |
| Frame Type | S |
| Suction Size | 3 |
| Discharge Size | 2-1/2 |
| CP-Length | NULL |
| HA-Dim | 14.63 |
| HB-Dim | 34.63 |
| HC-Dim | 37.13 |
| HD-Dim | 9.75 |
| HE2-Dim | 12.88 |
| HF1-Dim | 28.63 |
| HG-Height | NULL |
| HH-Dim | 0.75 |
| HL-Length | 3.00 |
| HM-Dim | 15.00 |
| HO-Dim | 15.75 |
| HP-Dim | 3.00 |
| HQ-Holes Per Side | 2 |
| Y-Length | 4.25 |
| Z-Length | 4.69 |
| Discharge Flange OD | 7.00 |
| Discharge Flange Thickness | 0.75 |
| Discharge Bolt Circle Dia | 5.50 |
| Discharge No of Bolts | 4 |
| Discharge Bolt Size | 0.75 |
| Suction Flange OD | 7.50 |
| Suction Flange Thickness | 0.81 |
| Suction Bolt Circle Dia | 6.00 |
| Suction No of Bolts | 4 |
| Suction Bolt Size | 0.75 |
| CAD model unit system | inch/pound |
