Product Section | Centrifugal Pumps & Accessories |
Product Subsection | Close Coupled Pumps |

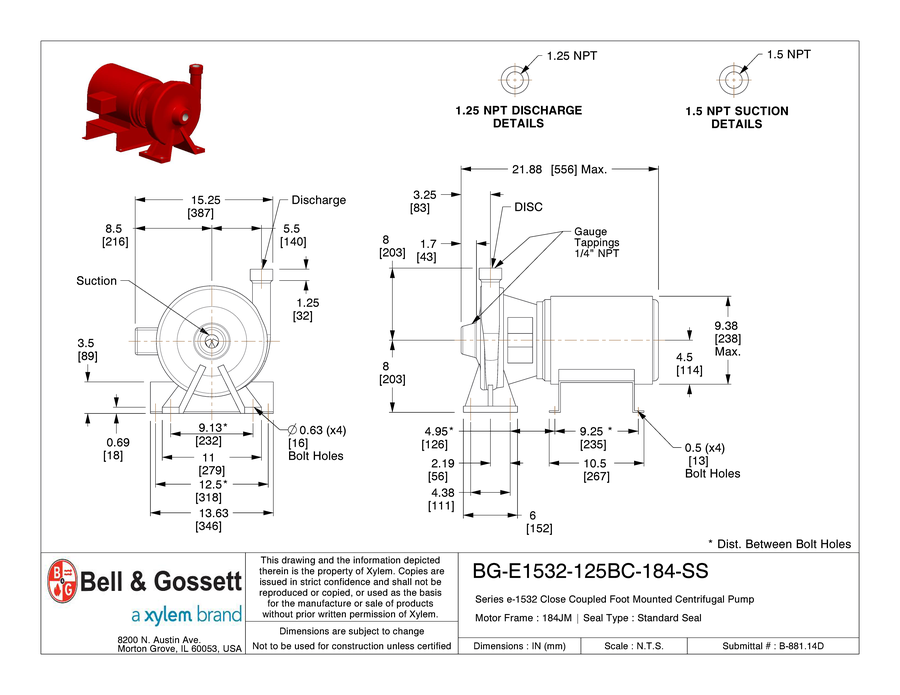

Product Series | e-1532 |
Pump Size | 1.25BC (NPT) |
Seal Type | Standard Seal |
Submittal ID | B-881.14D |
Motor Frame | 184JM |
Suction Size | 1.5 NPT |
Discharge Size | 1.25 NPT |
A-Dim | 11.00 |
AB-Length | 8.50 |
B-Dim | 6.00 |
CP-Dim | 21.88 |
CP-Length | NULL |
D-Dim | 4.50 |
DD-Height | 8.00 |
E2-Spacing of Holes | 9.13 |
F-Dim | 4.38 |
F2 | 2.19 |
G-Dim | 0.69 |
G1-Height | 0.19 |
H-Dim | 0.63 |
HA-Dim | 13.63 |
HB-Dim | 10.50 |
HE2-Spacing of Holes | 12.50 |
HF-Length | 9.25 |
HF2-Dim | 4.95 |
HG-Dim | 3.50 |
HG-Height | 3.50 |
HH-Dim | 0.50 |
HQ-Holes Per Side | 2 |
O-Height | 9.38 |
X-Dim | 8.00 |
Y-Length | 3.25 |
Z-Dim | 5.50 |
CAD model unit system | inch/pound |
