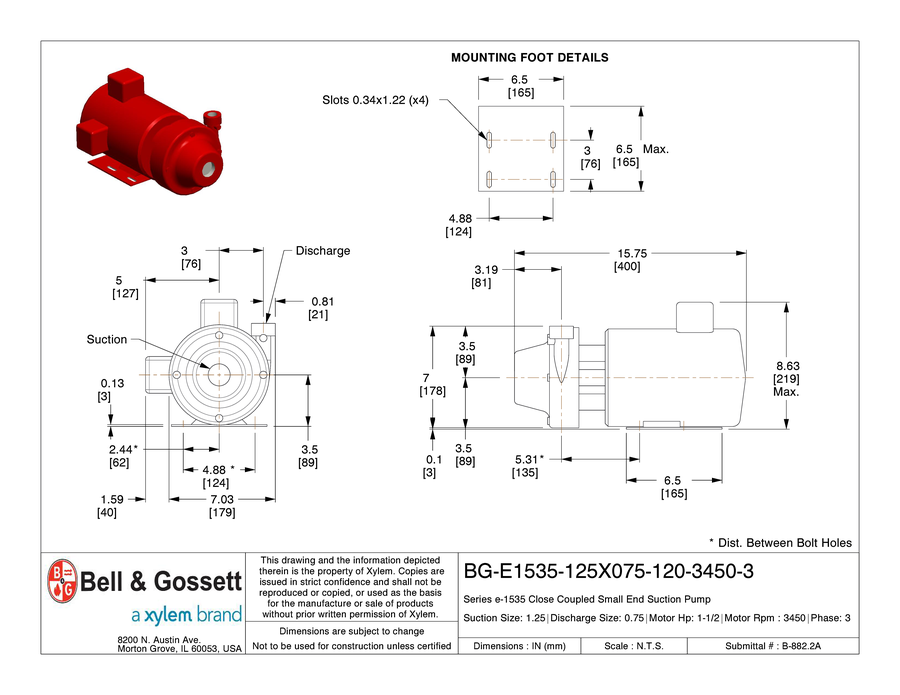

.75AAC Pumps: BG-E1535-125X075-120-3450-3
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Close Coupled Pumps |
| Product Series | e-1535 |
| Pump Size | .75AAC |
| Submittal ID | B-882.2A |
| RPM | 3450 |
| Motor HP | 1-1/2 |
| Suction Size | 1.25 |
| Discharge Size | 0.75 |
| A-Dim | 15.75 |
| B-Dim | 3.19 |
| C-Dim | 5.31 |
| CP-Length | NULL |
| D-Dim | 7.03 |
| E-Dim | 3.00 |
| F-Dim | 7.00 |
| G-Dim | -0.10 |
| CAD model unit system | inch/pound |
