Product Details
| Documentation |
| Contact CAD Support |
 |
| Product Section |
Centrifugal Pumps & Accessories |
| Product Subsection |
Close Coupled In-Line Centrifugal Pump |
| Product Series |
e-80X |
| Pump Size |
2x2x9.5C |
| Seal Type |
BUNA/C/SiC |
| Flange Type |
125 ANSI# |
| Submittal ID |

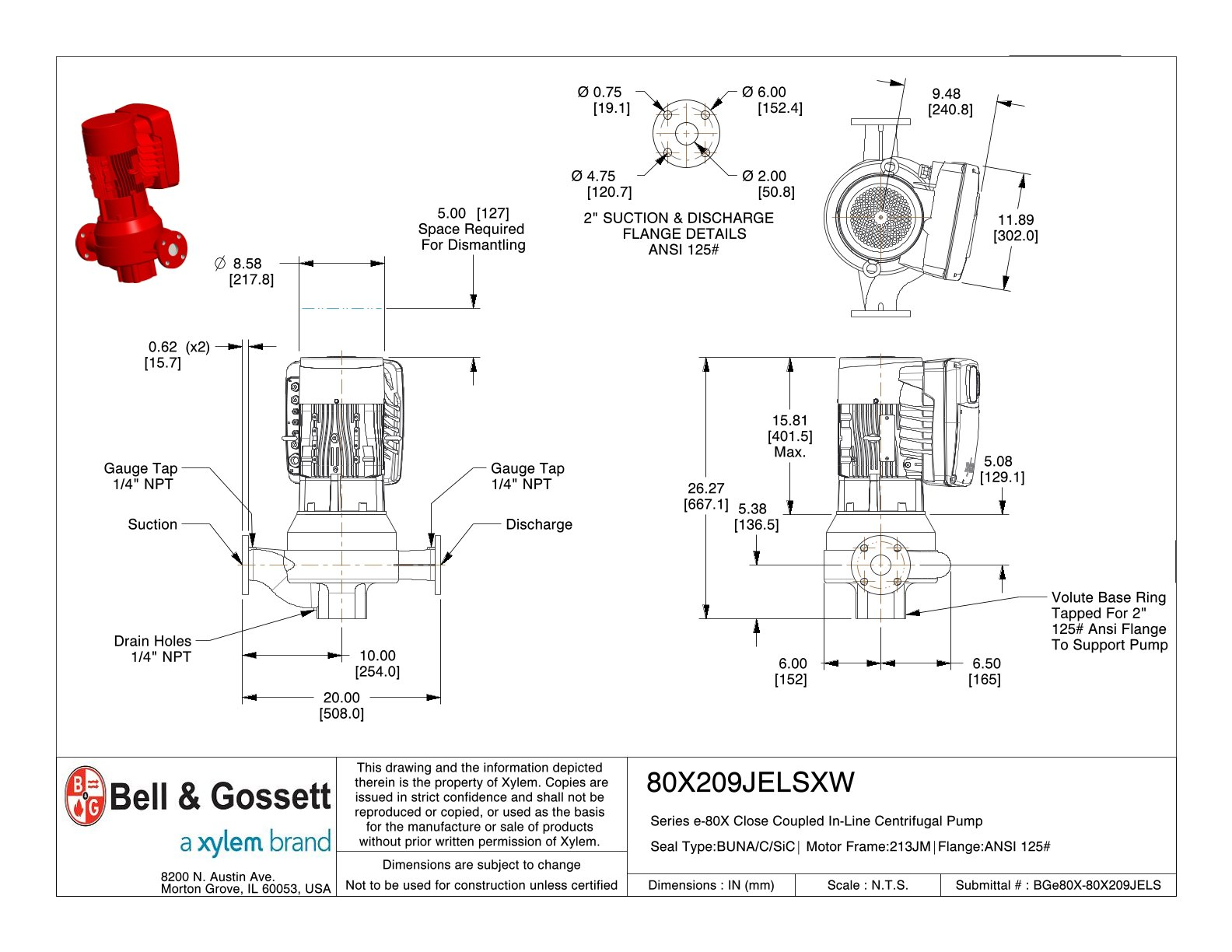

BGe80X-80X209JELS |
| RPM |
1500-2000 |
| Motor HP |
7.5 |
| Motor Frame |
213JM |
| ANSI Flange |
125 ANSI# |
| A-Dim |
10 [254] |
| B-Dim |
20 [508] |
| C-Dim |
6 [152] |
| D-Dim |
6.5 [165] |
| Voltage |
200-240V/230V |
| G-Dim |
5.38 [137] |
| Hv |
26.27 [667] |
| J-Dim |
4.75 [121] |
| N-Dim |
4 [102] |
| P-Dim |
0.75 [19] |
| Rv |
9.48 [241] |
| V-Dim |
5 [127] |
| W-Dim |
11.89 [302] |
| Xv |
1.19 [30] |
| Zv |
8.71 [221] |
| Trim Impeller |
9.5 |
| Gauge Tap (NPT) |
0.25 |
| Motor Code |
130636731 |
| Motor Type |
EXM213-215/3.075CH4 |
