- 4x4x9.5B
- >
- BG-E80-4x4x9.5B-SB182JP-A5-14-IN

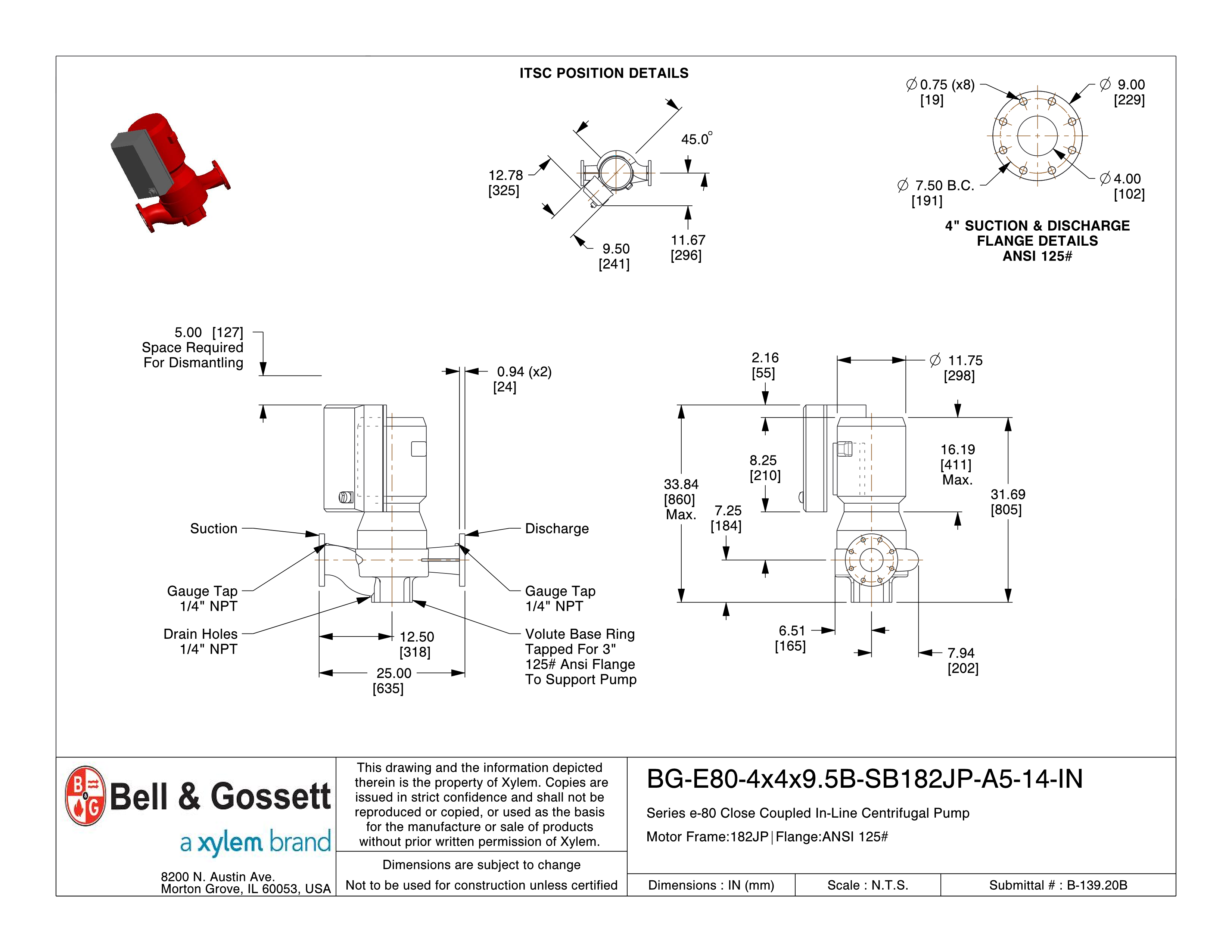

4x4x9.5B: BG-E80-4x4x9.5B-SB182JP-A5-14-IN
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Close-coupled Vertical In-Line Pump |
| Product Series | e-80 |
| Pump Size | 4x4x9.5B |
| Seal Type | Stuffing Box |
| Submittal ID | B-139.20B |
| Motor Frame | 182JP |
| Motor Enclosure | ODP |
| ANSI Flange | 125 ANSI# |
| ITSC Drive | ITSC Drive A5 |

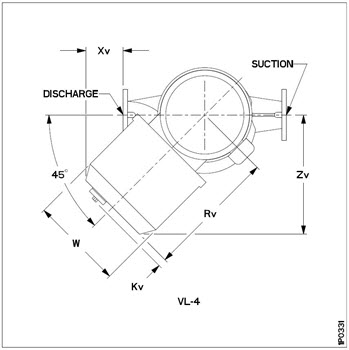

| ITSC Position | VL-4 |
| A-Dim | 12.50 |
| B-Dim | 25.00 |
| C-Dim | 6.51 |
| D-Dim | 7.94 |
| E-Dim | 15.31 |
| F-Dim | 8.25 |
| G-Dim | 7.25 |
| H-Dim | 30.69 |
| Hv | 33.84 |
| R-Dim | 11.75 |
| Rv | 12.78 |
| S-Dim | 1.00 |
| V-Space Req. for Dismantling | 5.00 |
| W-Dim | 9.5 |
| Xv | 2.44 |
| Zv | 13.19 |
| Discharge Bolt Circle Dia | 7.50 |
| Discharge No of Bolts | 8 |
| Discharge Bolt Size | 0.75 |
| Suction Bolt Circle Dia | 7.50 |
| Suction No of Bolts | 8 |
| Suction Bolt Size | 0.75 |
| CAD model unit system | inch/pound |
| Note | For Single Phase Motors add 1 in. to dimesnsions E & H. |
| Parallel Sensorless Controller | No |
