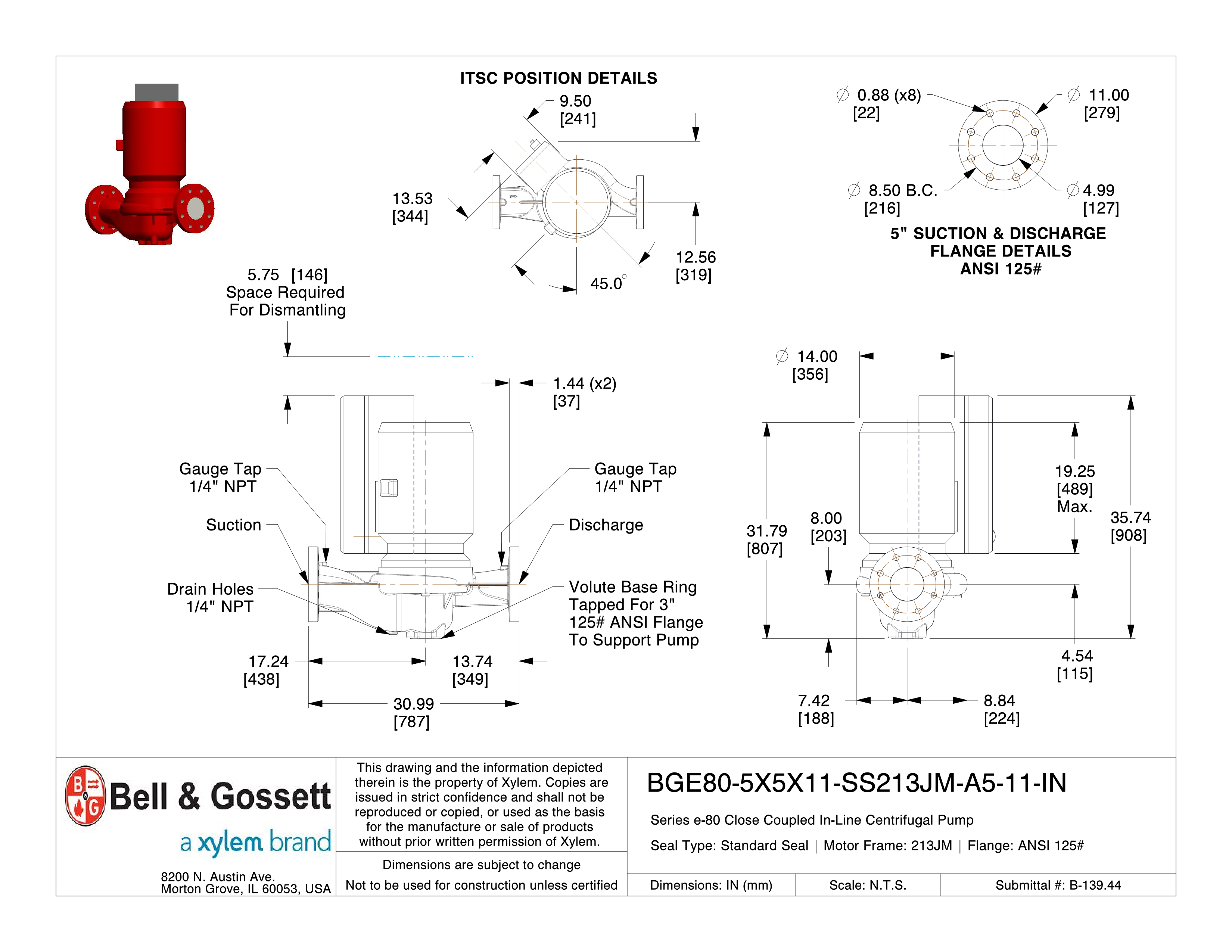

5x5x11: BGE80-5X5X11-SS213T-A5-11-IN
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Close Coupled In-Line Centrifugal Pump |
| Product Series | e-80 |
| Pump Size | 5x5x11 |
| Seal Type | Standard Seal |
| Submittal ID | B-139.44 |
| Motor Frame | 213JM |
| Motor Enclosure | TEFC |
| ANSI Flange | 125 ANSI# |
| ITSC Drive | ITSC Drive A5 |
| ITSC Position | VL-1 |
| A-Dim | 17.2438 |
| B-Dim | 30.9876 |
| C-Dim | 8.837 |
| D-Dim | 7.419 |
| E-Dim | 19.25 |
| F-Dim | 4.5375 |
| G-Dim | 8 |
| H-Dim | 31.79 |
| HA-Dim | 25 |
| HB-Dim | 35.99 |
| HE2-Dim | 21.5 |
| HF-Spacing | 32.49 |
| HH-Dim | 1 |
| Hv | 35.74 |
| R-Dim | 14 |
| Rv | 13.531 |
| V-Space Req. for Dismantling | 5.75 |
| W-Dim | 9.5 |
| Xv | 1.19 |
| Zv | 12.562 |
| Discharge Bolt Circle Dia | 8.5 |
| Discharge No of Bolts | 8 |
| Discharge Bolt Size | 0.88 |
| Suction Bolt Circle Dia | 8.5 |
| Suction No of Bolts | 8 |
| Suction Bolt Size | 0.88 |
| CAD model unit system | inch/pound |
| Note | For Single Phase Motors add 1 in. to dimesnsions E & H. |
