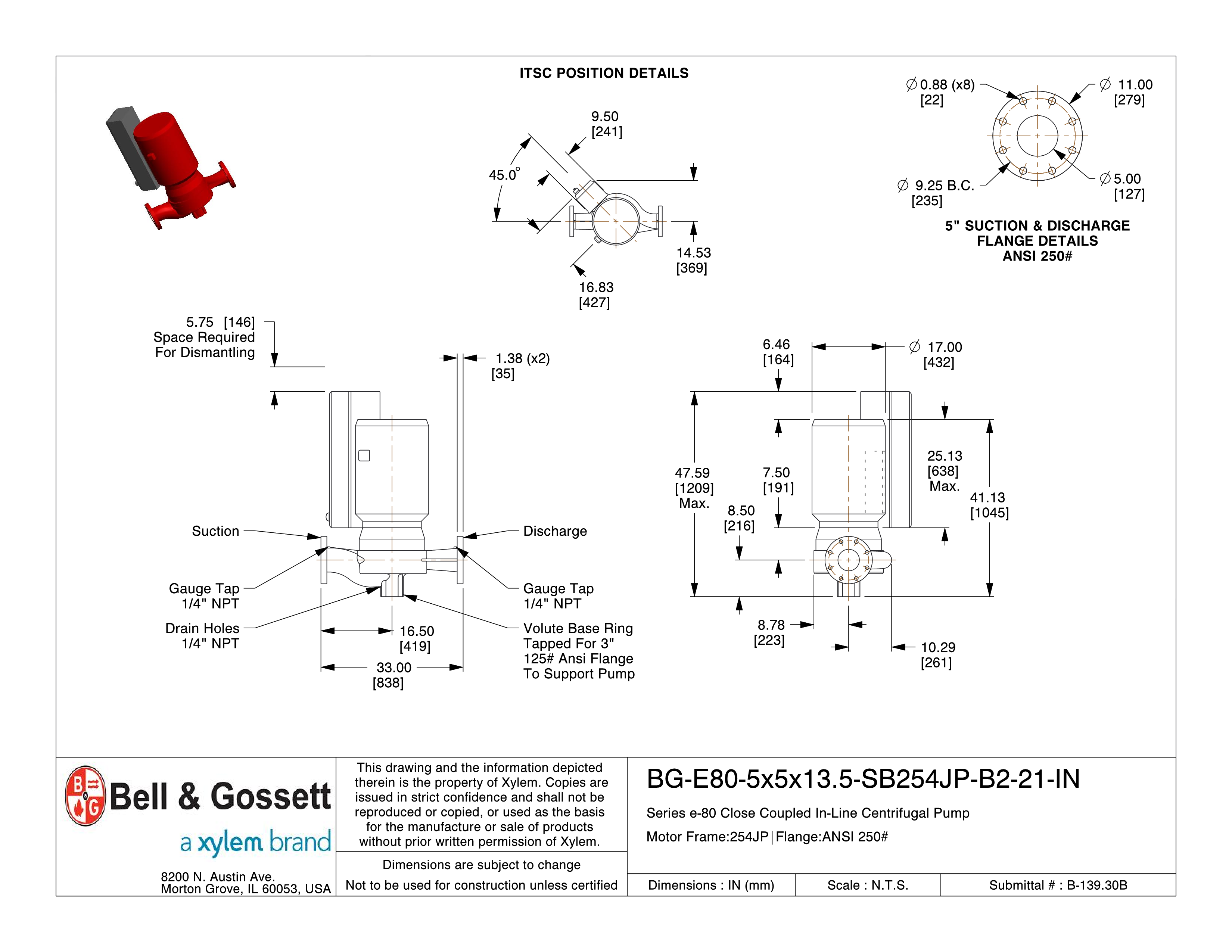

5x5x13.5: BG-E80-5x5x13.5-SB254JP-B2-21-IN
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Close-coupled Vertical In-Line Pump |
| Product Series | e-80 |
| Pump Size | 5x5x13.5 |
| Seal Type | Stuffing Box |
| Submittal ID | B-139.30B |
| Motor Frame | 254JP |
| Motor Enclosure | ODP |
| ANSI Flange | 250 ANSI# |
| ITSC Drive | ITSC Drive B2 |
| ITSC Position | VL-1 |
| A-Dim | 16.50 |
| B-Dim | 33.00 |
| C-Dim | 8.78 |
| D-Dim | 10.29 |
| E-Dim | 24.13 |
| F-Dim | 7.50 |
| G-Dim | 8.50 |
| H-Dim | 40.13 |
| Hv | 47.59 |
| R-Dim | 17.00 |
| Rv | 16.83 |
| V-Space Req. for Dismantling | 5.75 |
| W-Dim | 9.5 |
| Xv | 0.86 |
| Zv | 14.92 |
| Discharge Bolt Circle Dia | 9.25 |
| Discharge No of Bolts | 8 |
| Discharge Bolt Size | 0.88 |
| Suction Bolt Circle Dia | 9.25 |
| Suction No of Bolts | 8 |
| Suction Bolt Size | 0.88 |
| CAD model unit system | inch/pound |
| Note | For Single Phase Motors add 1 in. to dimesnsions E & H. |
| Parallel Sensorless Controller | No |
