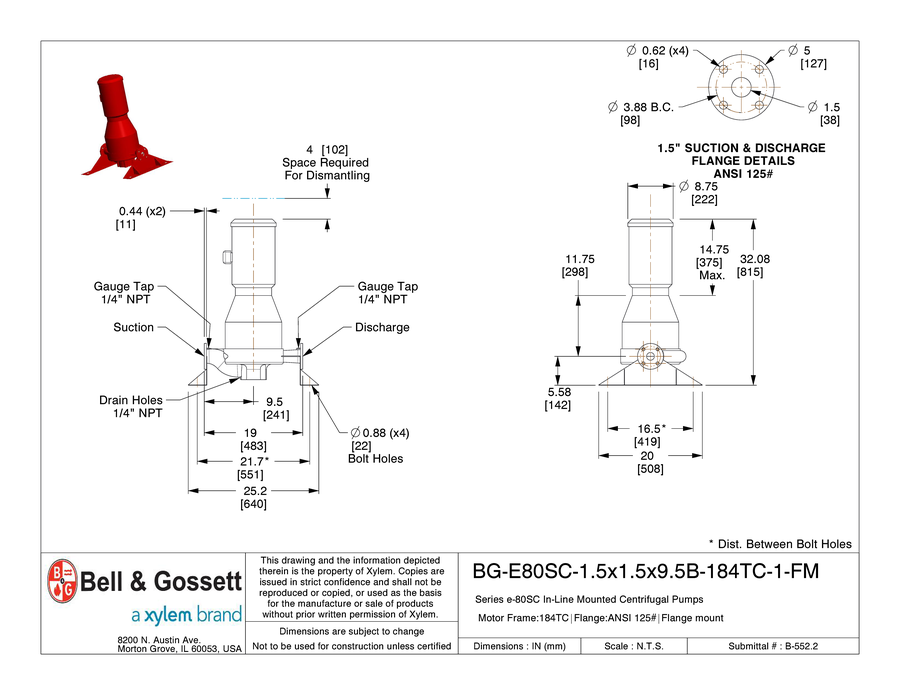

1.5x1.5x9.5B: BG-E80SC-1.5x1.5x9.5B-184TC-1-FM
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Close-coupled Vertical In-Line Pump |
| Product Series | e-80SC |
| Pump Size | 1.5x1.5x9.5B |
| Shaft Motor | TC |
| Submittal ID | B-552.2 |
| Motor Frame | 184TC |
| Motor Enclosure | ODP |
| ANSI Flange | 125 ANSI# |
| ITSC Drive | Standard Pump |
| ITSC Position | N/A |
| A-Dim | 9.50 |
| E-Dim | 13.25 |
| F-Dim | 11.75 |
| G-Dim | 5.58 |
| H-Dim | 30.58 |
| HA-Dim | 20.00 |
| HB-Dim | 25.25 |
| HE2-Dim | 16.50 |
| HF-Spacing | 21.75 |
| HH-Dim | 0.88 |
| R-Dim | 8.75 |
| V-Space Req. for Dismantling | 4.00 |
| Discharge Bolt Circle Dia | 3.88 |
| Discharge No of Bolts | 4 |
| Discharge Bolt Size | 0.63 |
| Suction Bolt Circle Dia | 3.88 |
| Suction No of Bolts | 4 |
| Suction Bolt Size | 0.63 |
| CAD model unit system | inch/pound |
