- BG-E80SC-2.5x2.5x9.5C-143TC-A5-14-FM

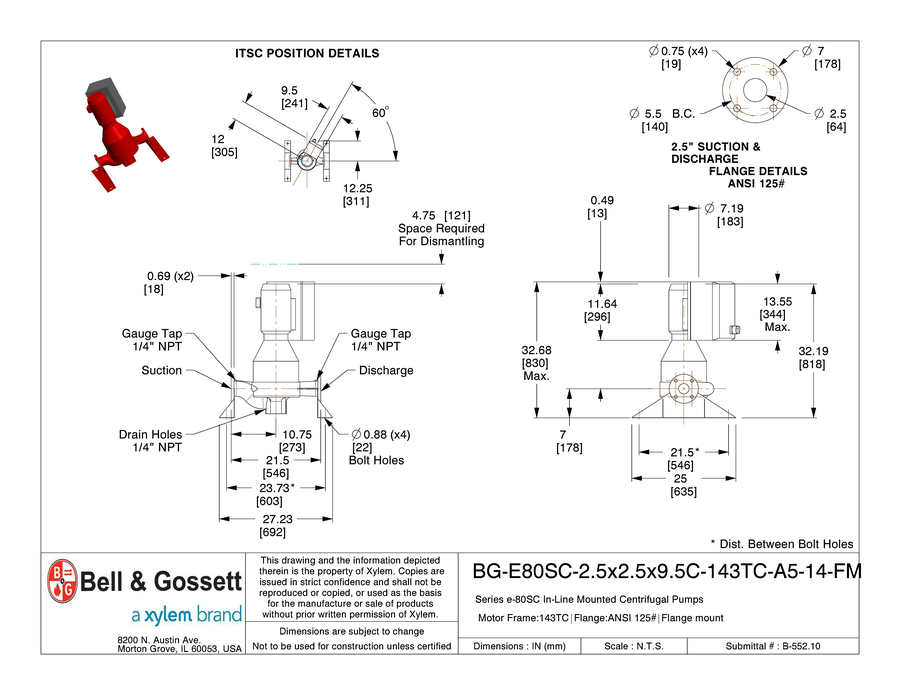

2.5x2.5x9.5C: BG-E80SC-2.5x2.5x9.5C-143TC-A5-14-FM
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Close-coupled Vertical In-Line Pump |
| Product Series | e-80SC |
| Pump Size | 2.5x2.5x9.5C |
| Shaft Motor | TC |
| Submittal ID | B-552.10 |
| Motor Frame | 143TC |
| Motor Enclosure | ODP |
| ANSI Flange | 125 ANSI# |
| ITSC Drive | ITSC Drive A5 |

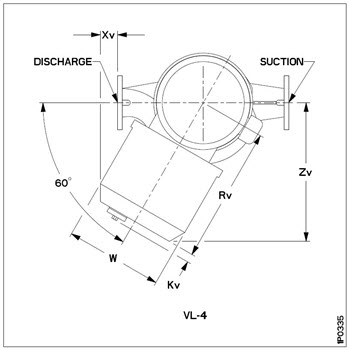

| ITSC Position | VL-4 |
| A-Dim | 10.75 |
| E-Dim | 12.05 |
| F-Dim | 11.64 |
| G-Dim | 7.00 |
| H-Dim | 30.69 |
| HA-Dim | 25.00 |
| HB-Dim | 27.23 |
| HE2-Dim | 21.50 |
| HF-Spacing | 23.73 |
| HH-Dim | 0.88 |
| Hv | 32.68 |
| R-Dim | 7.19 |
| Rv | 12.00 |
| V-Space Req. for Dismantling | 4.75 |
| W-Dim | 9.50 |
| Xv | 1.02 |
| Zv | 12.53 |
| Discharge Bolt Circle Dia | 5.50 |
| Discharge No of Bolts | 4 |
| Discharge Bolt Size | 0.75 |
| Suction Bolt Circle Dia | 5.50 |
| Suction No of Bolts | 4 |
| Suction Bolt Size | 0.75 |
| CAD model unit system | inch/pound |
| Parallel Sensorless Controller | No |
