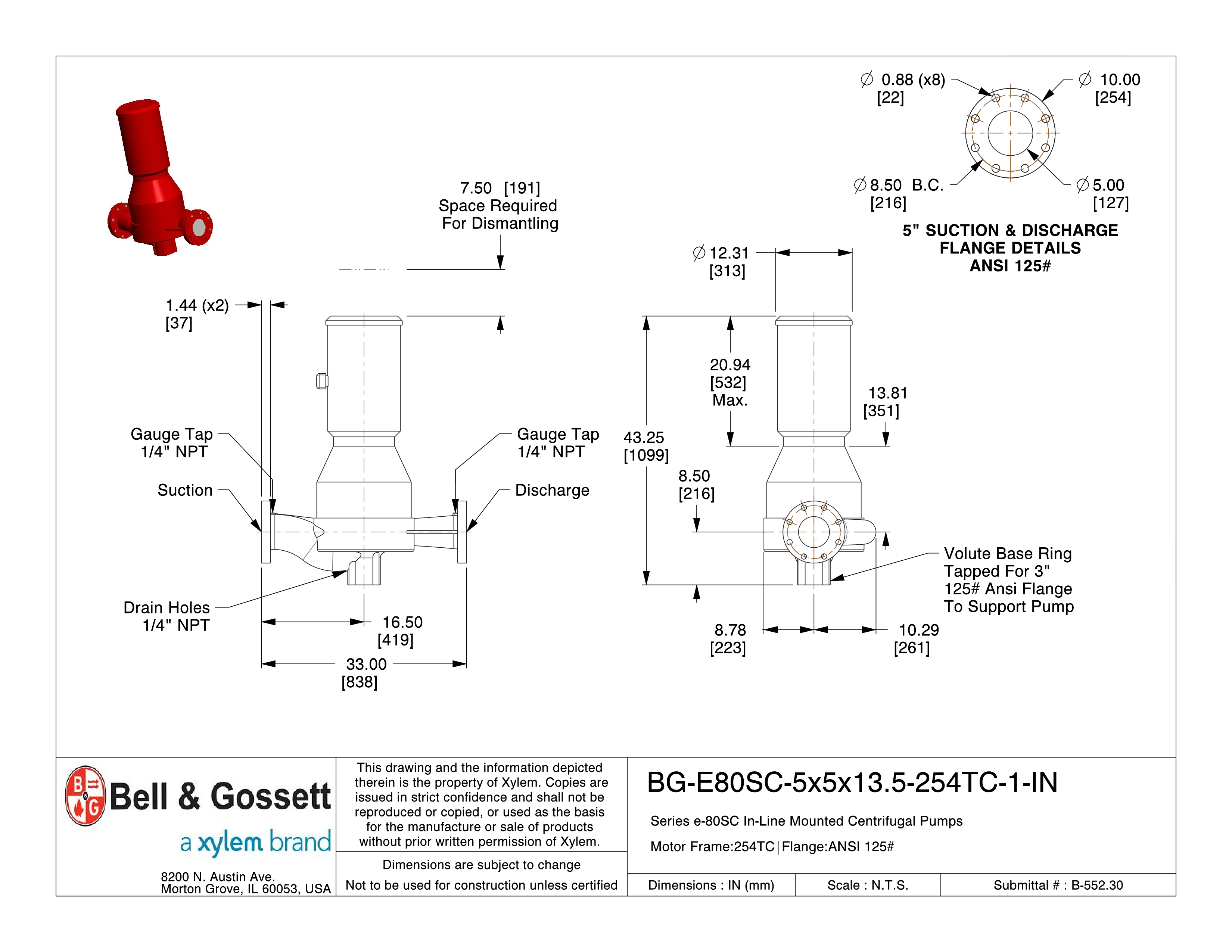

5x5x13.5: BG-E80SC-5x5x13.5-254TC-1-IN
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Close-coupled Vertical In-Line Pump |
| Product Series | e-80SC |
| Pump Size | 5x5x13.5 |
| Shaft Motor | TC |
| Submittal ID | B-552.30 |
| Motor Frame | 254TC |
| Motor Enclosure | ODP |
| ANSI Flange | 125 ANSI# |
| ITSC Drive | Standard Pump |
| ITSC Position | N/A |
| A-Dim | 16.50 |
| B-Dim | 33.00 |
| C-Dim | 8.78 |
| D-Dim | 10.29 |
| E-Dim | 19.44 |
| F-Dim | 13.81 |
| G-Dim | 8.50 |
| H-Dim | 41.75 |
| R-Dim | 12.31 |
| V-Space Req. for Dismantling | 7.50 |
| Discharge Bolt Circle Dia | 8.50 |
| Discharge No of Bolts | 8 |
| Discharge Bolt Size | 0.88 |
| Suction Bolt Circle Dia | 8.50 |
| Suction No of Bolts | 8 |
| Suction Bolt Size | 0.88 |
| CAD model unit system | inch/pound |
