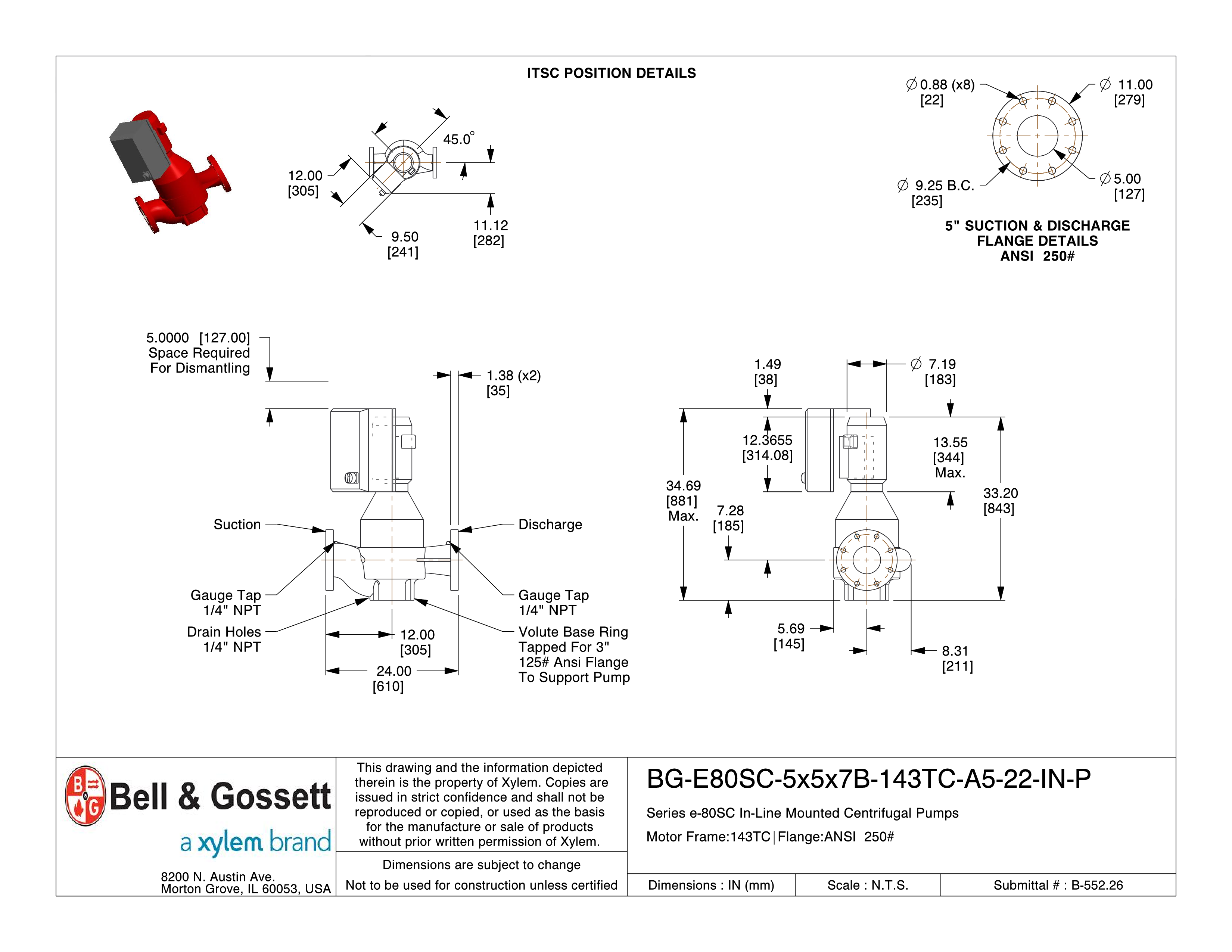

5x5x7B: BG-E80SC-5x5x7B-143TC-A5-22-IN
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Close-coupled Vertical In-Line Pump |
| Product Series | e-80SC |
| Pump Size | 5x5x7B |
| Shaft Motor | TC |
| Submittal ID | B-552.26 |
| Motor Frame | 143TC |
| Motor Enclosure | ODP |
| ANSI Flange | 250 ANSI# |
| ITSC Drive | ITSC Drive A5 |

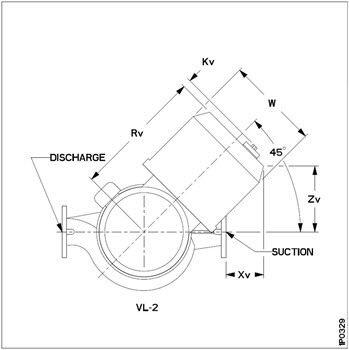

| ITSC Position | VL-2 |
| A-Dim | 12.00 |
| B-Dim | 24.00 |
| C-Dim | 5.69 |
| D-Dim | 8.31 |
| E-Dim | 12.05 |
| F-Dim | 12.37 |
| G-Dim | 7.28 |
| H-Dim | 31.70 |
| Hv | 34.69 |
| R-Dim | 7.19 |
| Rv | 12 |
| V-Space Req. for Dismantling | 5.00 |
| W-Dim | 9.5 |
| Xv | 2.03 |
| Zv | 11.53 |
| Discharge Bolt Circle Dia | 9.25 |
| Discharge No of Bolts | 8 |
| Discharge Bolt Size | 0.88 |
| Suction Bolt Circle Dia | 9.25 |
| Suction No of Bolts | 8 |
| Suction Bolt Size | 0.88 |
| CAD model unit system | inch/pound |
| Parallel Sensorless Controller | No |
