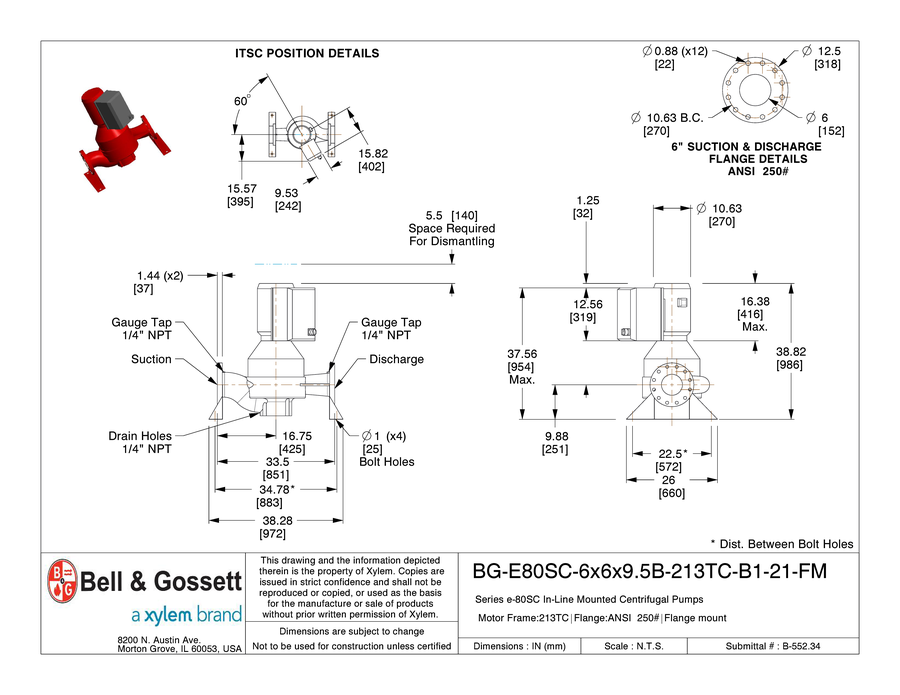

6x6x9.5B: BG-E80SC-6x6x9.5B-213TC-B1-21-FM
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Close-coupled Vertical In-Line Pump |
| Product Series | e-80SC |
| Pump Size | 6x6x9.5B |
| Shaft Motor | TC |
| Submittal ID | B-552.34 |
| Motor Frame | 213TC |
| Motor Enclosure | ODP |
| ANSI Flange | 250 ANSI# |
| ITSC Drive | ITSC Drive B1 |
| ITSC Position | VL-1 |
| A-Dim | 16.75 |
| E-Dim | 14.88 |
| F-Dim | 12.56 |
| G-Dim | 9.88 |
| H-Dim | 37.31 |
| HA-Dim | 26.00 |
| HB-Dim | 38.28 |
| HE2-Dim | 22.50 |
| HF-Spacing | 34.78 |
| HH-Dim | 1.00 |
| Hv | 37.56 |
| R-Dim | 10.63 |
| Rv | 15.82 |
| V-Space Req. for Dismantling | 5.50 |
| W-Dim | 9.53 |
| Xv | 7.85 |
| Zv | 15.43 |
| Discharge Bolt Circle Dia | 10.63 |
| Discharge No of Bolts | 12 |
| Discharge Bolt Size | 0.88 |
| Suction Bolt Circle Dia | 10.63 |
| Suction No of Bolts | 12 |
| Suction Bolt Size | 0.88 |
| CAD model unit system | inch/pound |
| Parallel Sensorless Controller | No |
