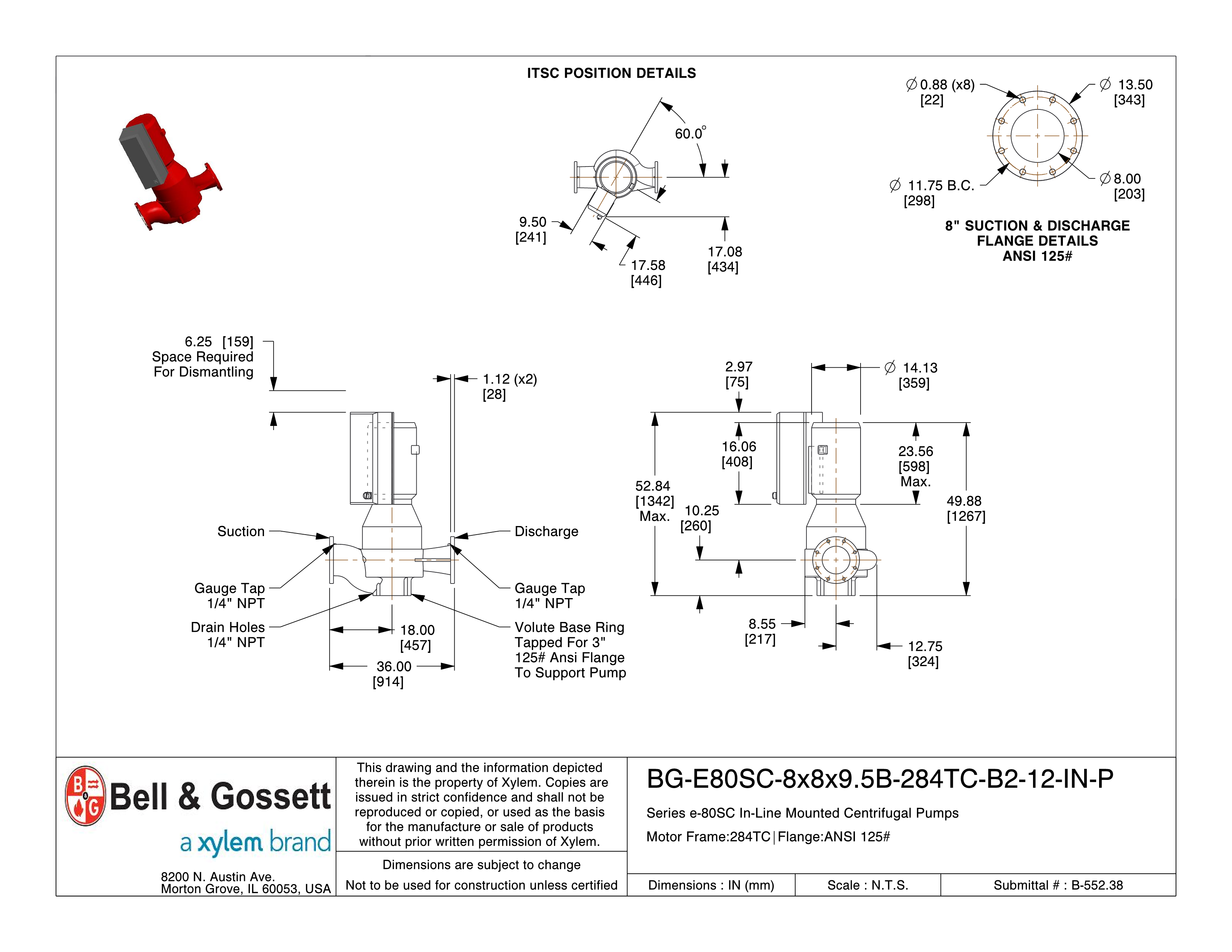

8x8x9.5B: BG-E80SC-8x8x9.5B-284TC-B2-12-IN
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Close-coupled Vertical In-Line Pump |
| Product Series | e-80SC |
| Pump Size | 8x8x9.5B |
| Shaft Motor | TC |
| Submittal ID | B-552.38 |
| Motor Frame | 284TC |
| Motor Enclosure | ODP |
| ANSI Flange | 125 ANSI# |
| ITSC Drive | ITSC Drive B2 |

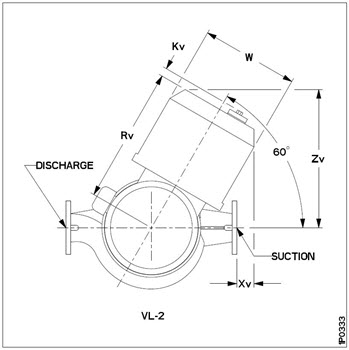

| ITSC Position | VL-2 |
| A-Dim | 18.00 |
| B-Dim | 36.00 |
| C-Dim | 8.55 |
| D-Dim | 12.75 |
| E-Dim | 22.06 |
| F-Dim | 16.06 |
| G-Dim | 10.25 |
| H-Dim | 48.38 |
| Hv | 52.84 |
| R-Dim | 14.13 |
| Rv | 17.58 |
| V-Space Req. for Dismantling | 6.25 |
| W-Dim | 9.5 |
| Xv | 5.5 |
| Zv | 17.36 |
| Discharge Bolt Circle Dia | 11.75 |
| Discharge No of Bolts | 8 |
| Discharge Bolt Size | 0.88 |
| Suction Bolt Circle Dia | 11.75 |
| Suction No of Bolts | 8 |
| Suction Bolt Size | 0.88 |
| CAD model unit system | inch/pound |
| Parallel Sensorless Controller | No |
