4x4x9.5: BGe82SC-4x4x9.5-213TC-B1-VL2_FM
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Close-coupled Vertical In-Line Pump |
| Product Series | e-82SC |
| Pump Size | 4x4x9.5 |
| Shaft Motor | TC |
| Submittal ID | B-147 |
| Motor Frame | 213TC |
| Motor Enclosure | Flange |
| ANSI Flange | 125# ANSI |
| ITSC Drive | ITSCDriveB1 |
| ITSC Position | VL2_FM |

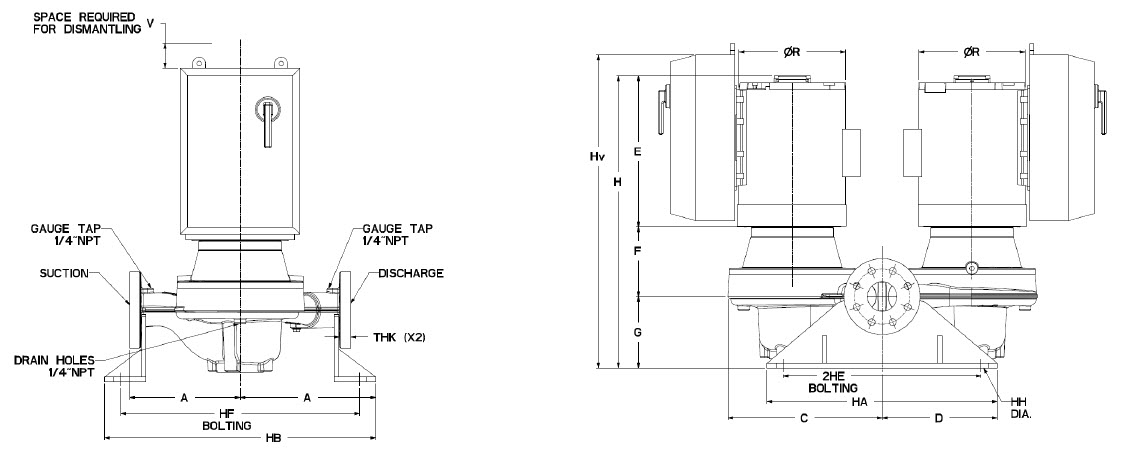

| A-Dim | 12.50 |
| C-Dim | 15.41 |
| D-Dim | 16.23 |
| E-Dim | 14.88 |
| F-Dim | 12.75 |
| G-Dim | 9.02 |
| H-Dim | 36.65 |
| HA-Dim | 25.00 |
| HB-Dim | 30.16 |
| HE2-Dim | 21.50 |
| HF-Spacing | 26.66 |
| HH-Dim | 0.88 |
| Hv | 36.31 |
| J-Dim | 7.50 |
| N-Dim | 8 |
| P-Dim | 0.75 |
| R-Dim | 10.63 |
| Rv | 15.84 |
| V-Dim | 5.00 |
| W-Dim | 9.50 |
| Xv | 0.91 |
| Zv | 24.34 |
| CAD model unit system | inch/pound |
| Note | For TEFC motors add 1.5” to dimensions E & H. |
| Parallel Sensorless Controller | No |
