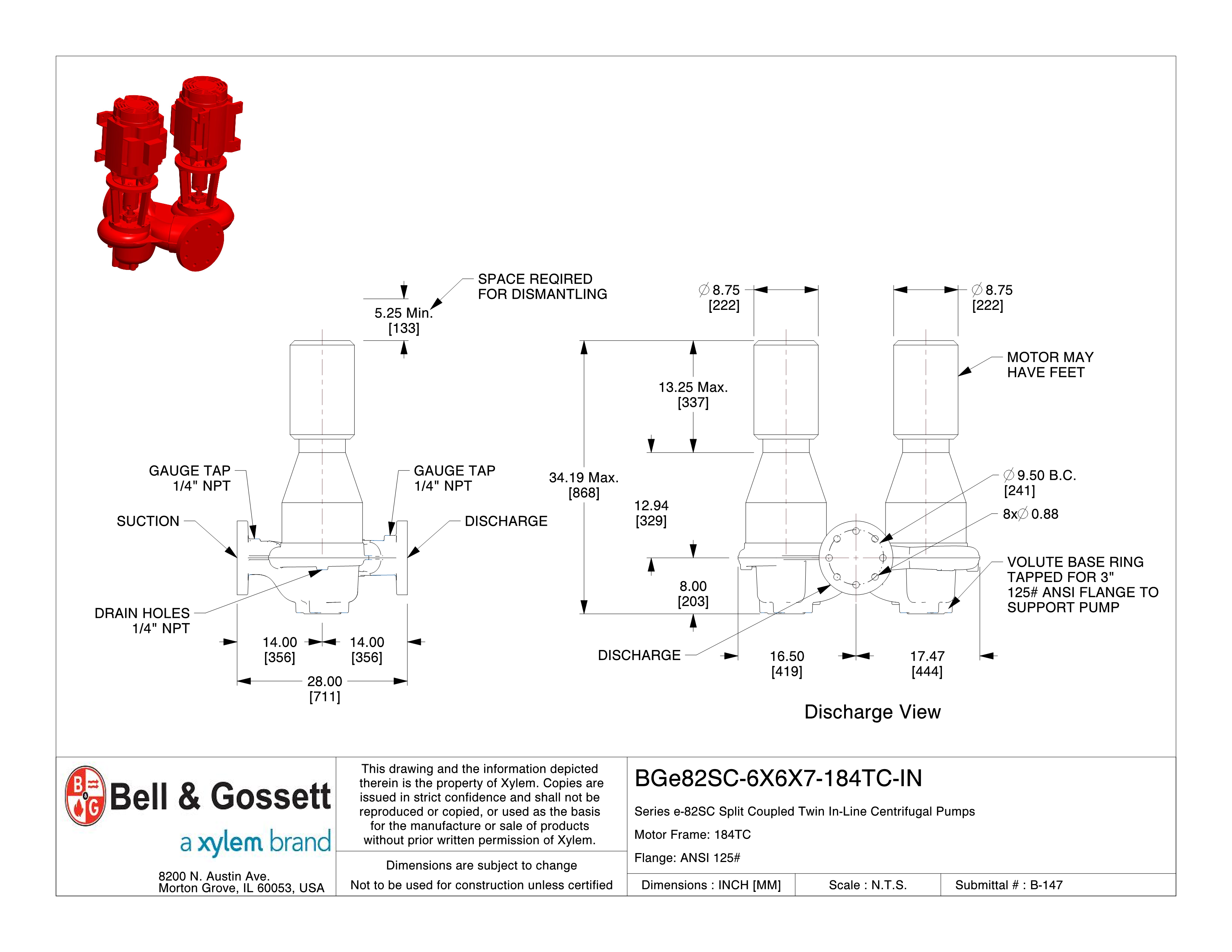

6x6x7: BGe82-6X6X7-184TC-IN
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Close-coupled Vertical In-Line Pump |
| Product Series | e-82SC |
| Pump Size | 6x6x7B |
| Shaft Motor | TC |
| Submittal ID | B-147 |
| Motor Frame | 184TC |
| Motor Enclosure | TEFC |
| ANSI Flange | 125# ANSI |
| A-Dim | 14.00 |
| B-Dim | 28.00 |
| C-Dim | 16.50 |
| D-Dim | 17.47 |
| E-Dim | 13.25 |
| F-Dim | 12.94 |
| G-Dim | 8.00 |
| H-Dim | 34.19 |
| J-Dim | 9.50 |
| N-Dim | 8 |
| P-Dim | 0.88 |
| R-Dim | 8.75 |
| V-Dim | 5.25 |
| CAD model unit system | inch/pound |
| Note | For TEFC motors add 1.5” to dimensions E & H. |
