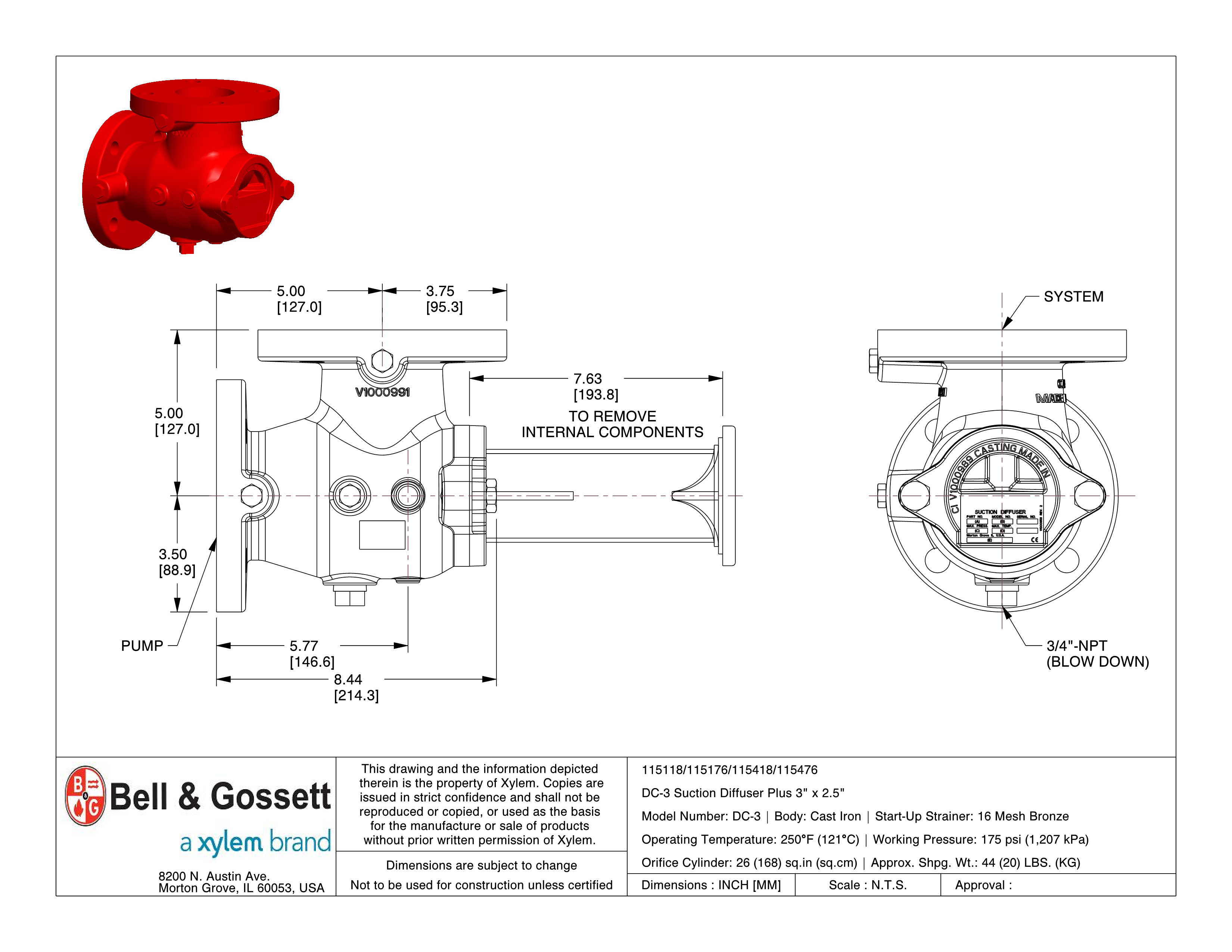

DC-3 Suction Diffuser Plus 3" x 2.5"
Model: 115118/115176/115418/115476
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Pump Accessories |
| Product Series | Suction Diffuser |
| Submittal ID | B-825H |
| SS-System Side Size | 3 |
| SS-System Side Type | Flanged |
| PS-Pump Side Size | 2.5 |
| PS-Pump Side Type | Flanged |
| A-Dim | 8.75 (222) |
| B-Dim | 5 (127) |
| C-Dim | 5 (127) |
| D-Dim | 3.50 (89) |
| E-Dim | 3/4 (19) |
| F-Dim | 5.77 (147) |
| G-Dim | N/A |
| H-Dim | 7.63 (193.7) |
| J-Dim | 3.75 (95) |
| Oriface Cyl. Free Area Sq. | 26 (168) |
| Approx. Shpg. Wt. (lb) | 44 (20) |
| CAD model unit system | inch/pound |
