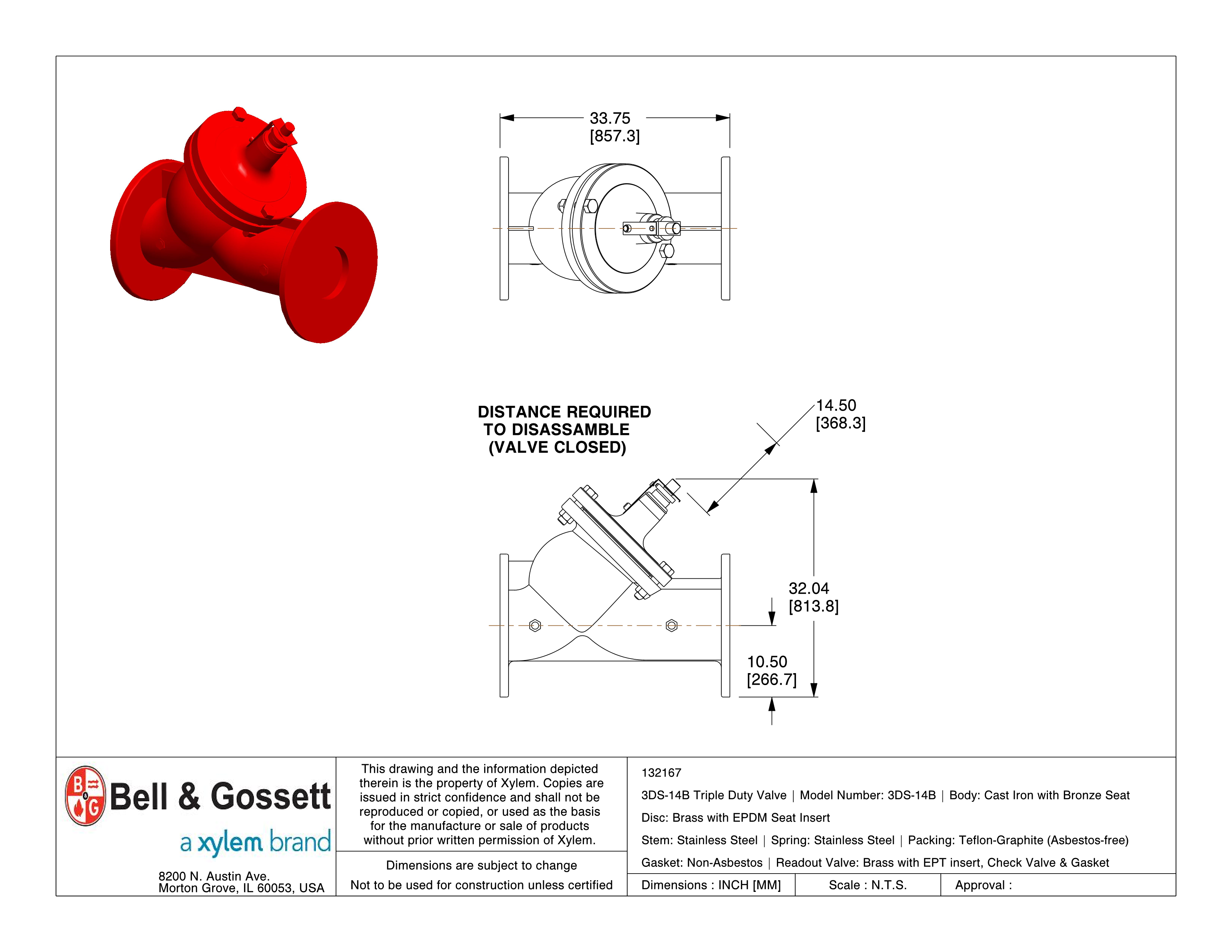

3DS-14B Triple Duty Valve
Model: 132167
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Pump Accessories |
| Product Series | Triple Duty Valves |
| Description | Balanced Straight Pattern Flanged |
| Submittal ID | B-833 |
| Part Number | 132167 |
| Connection Size | 14 |
| Connection Type | Flanged |
| A-Open | 34.42 |
| A-Close | 32.04 |
| B-Dim | 33.75 |
| C-Dim | 10.50 |
| E-Dim | 14.50 |
| Approx. Shpg. Wt. (lb) | 765 |
| CAD model unit system | inch/pound |
