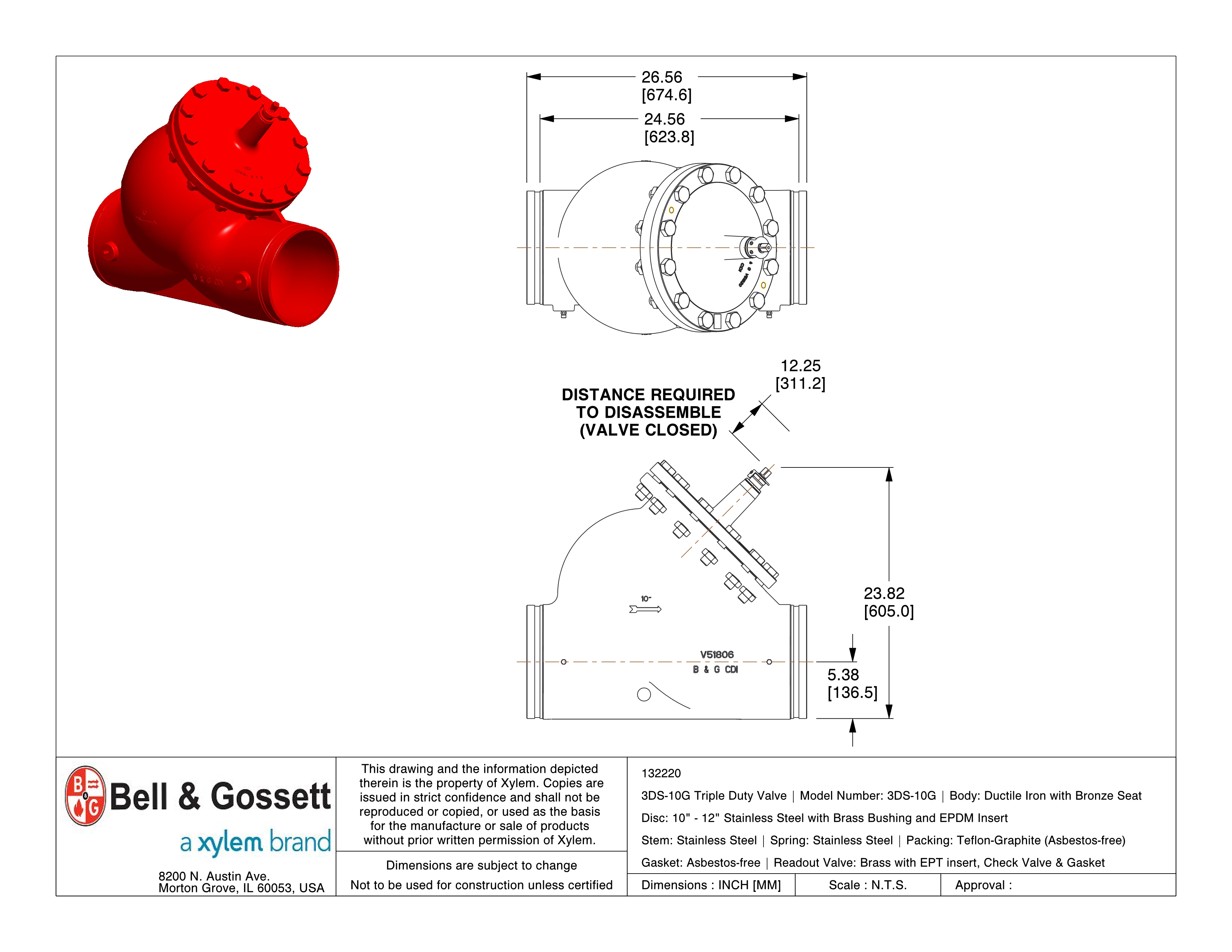

3DS-10G Triple Duty Valve
Model: 132220
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Pump Accessories |
| Product Series | Triple Duty Valves |
| Description | Straight Pattern Grooved |
| Submittal ID | B-807G |
| Part Number | 132220 |
| Connection Size | 10 |
| Connection Type | Grooved |
| A-Open | 20-7/8 (530) |
| A-Close | 18-1/2 (470) |
| B-Dim | 26-1/2 (673) |
| C-Dim | 5-3/8 (137) |
| D-Dim | 23-1/8 (587) |
| E-Dim | 12-1/4 (311) |
| Approx. Shpg. Wt. (lb) | 384 (174) |
| CAD model unit system | inch/pound |
