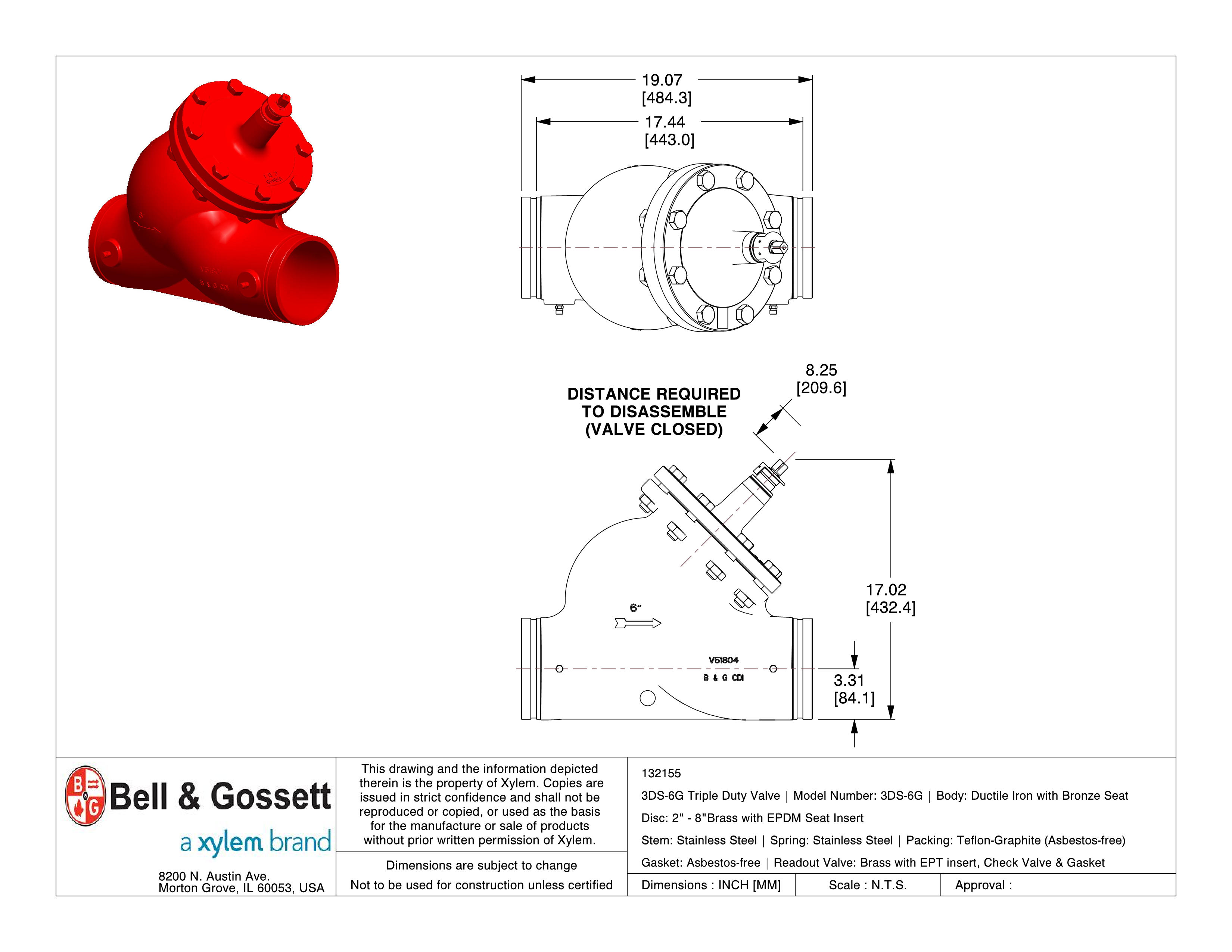

3DS-6G Triple Duty Valve
Model: 132155
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Pump Accessories |
| Product Series | Triple Duty Valves |
| Description | Straight Pattern Grooved |
| Submittal ID | B-807G |
| Part Number | 132155 |
| Connection Size | 6 |
| Connection Type | Grooved |
| A-Open | 15-1/4 (387) |
| A-Close | 13-3/4 (349) |
| B-Dim | 19 (483) |
| C-Dim | 3-5/16 (84) |
| D-Dim | 17-1/2 (444) |
| E-Dim | 8-1/4 (210) |
| Approx. Shpg. Wt. (lb) | 160 (73) |
| CAD model unit system | inch/pound |
