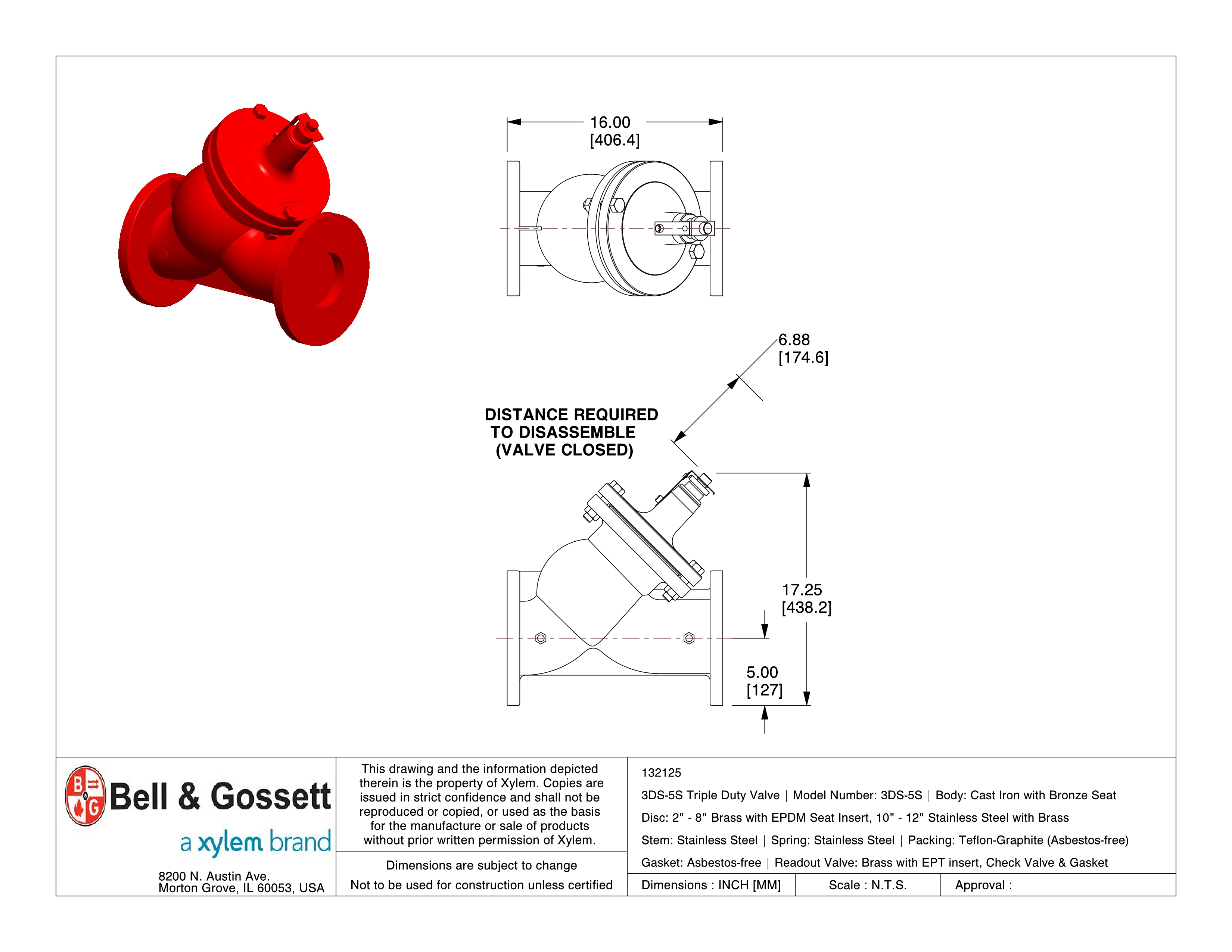

3DS-5S Triple Duty Valve
Model: 132125
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Pump Accessories |
| Product Series | Triple Duty Valves |
| Description | Straight Pattern Flanged |
| Submittal ID | B-830C |
| Part Number | 132125 |
| Connection Size | 5 |
| Connection Type | Flanged |
| A-Open | 18-1/2 |
| A-Close | 17-1/4 |
| B-Dim | 16 |
| C-Dim | 5 |
| E-Dim | 6-7/8 |
| Approx. Shpg. Wt. (lb) | 114 |
| CAD model unit system | inch/pound |
