HFT-90V Diaphragm Tank

Model: 1BN333

Download CAD

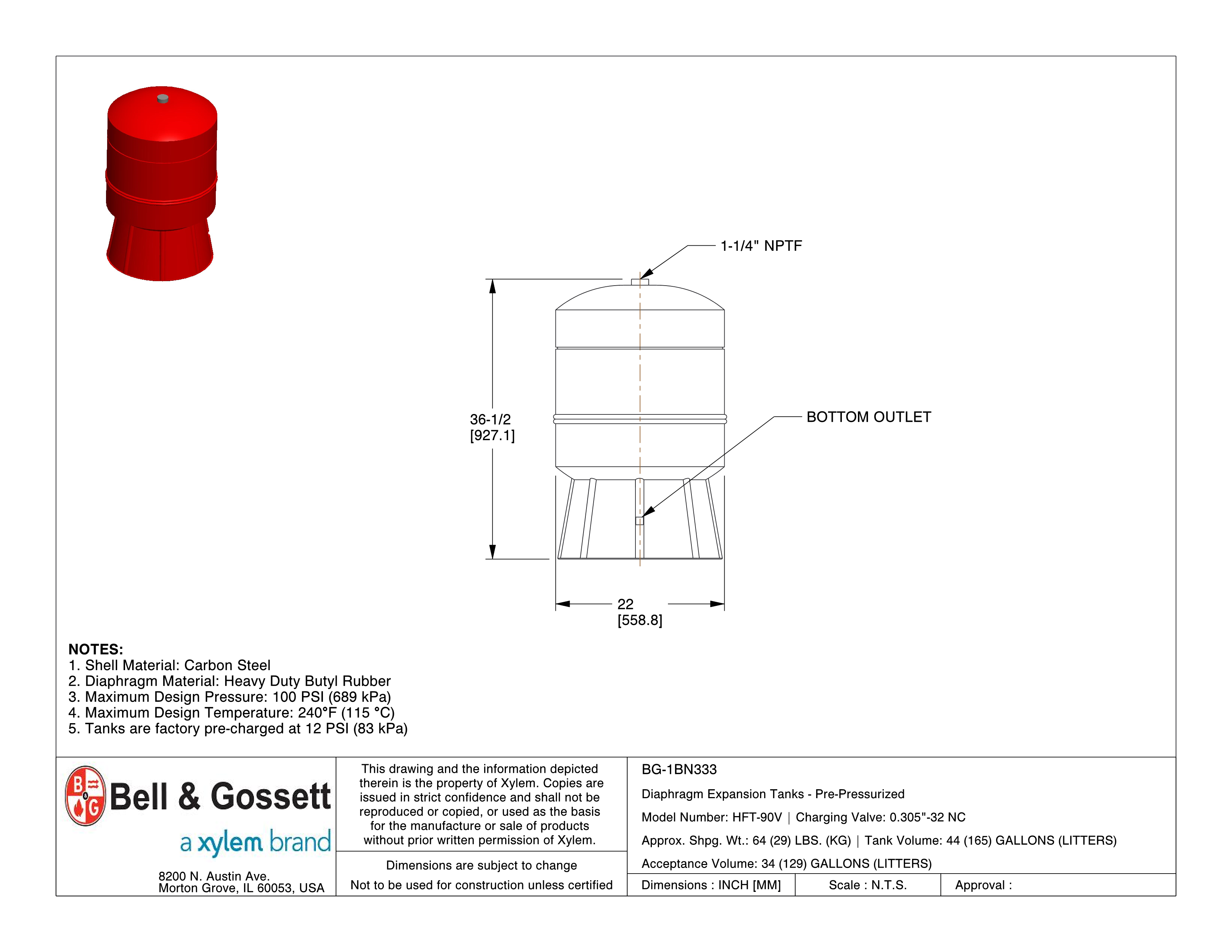

View 3D Model View Sales Drawing

View Spec Sheet

Product Details

Documentation
AutoCAD / AutoCAD MEP support
Contact CAD Support
Adobe 3D PDF help

Product Section	Air Control
Product Subsection	Expansion/Compression Tanks
Product Series	Series HFT Residential/Light Commercial HVAC Diaphragm Expansion Tanks
Description	HFT-90V Diaphragm Tank
Submittal ID	A-317C
Part Number	1BN333
Volume Gallons Tank (Gal (L))	44 (165)
Volume Gallons Acceptance (Gal (L))	34 (129)
A-Dim	36-1/2 (927)
B-Diameter	22 (559)
System Connection	1-1/4" NPTF
Charging Valve	.305"-32 NC
Approx. Shpg Wt. (lb)	64 (29)
CAD model unit system	inch/pound
